HIP4082IBZT

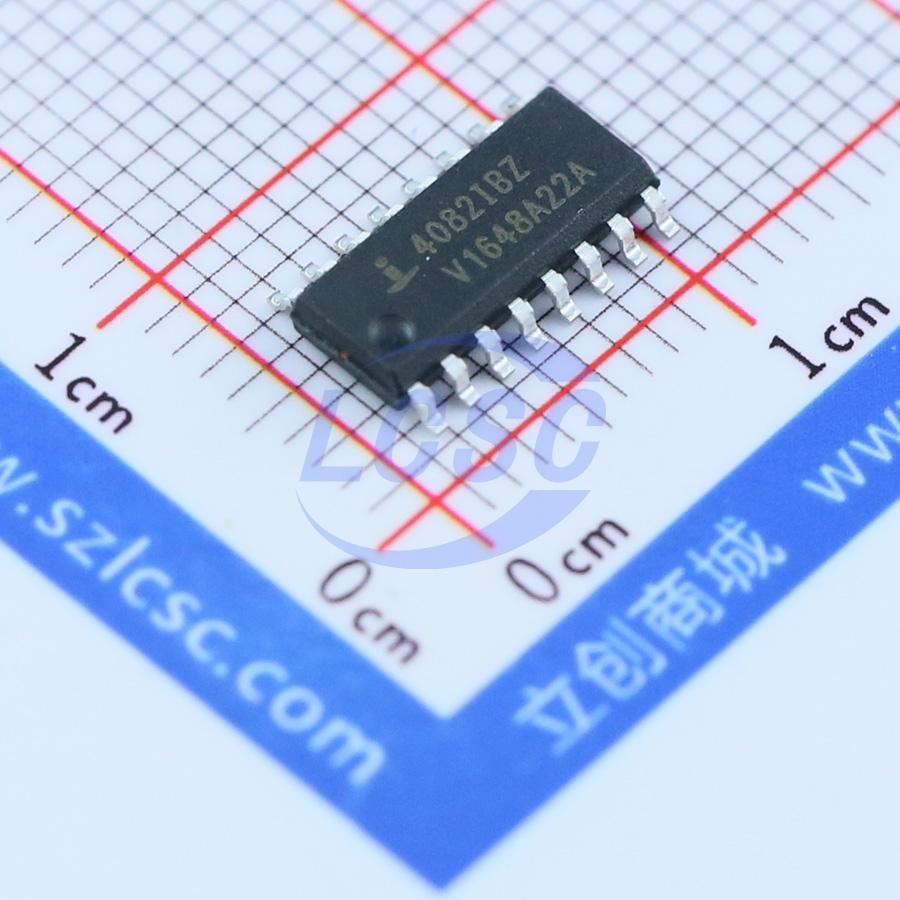

4 MOSFET 1.1A 9ns 9ns 1.3A SOIC-16 Full, Half-Bridge (H Bridge) Drivers RoHS

SOIC-16ROHS3 CompliantActive

80V, 1.25A Peak Current H-Bridge FET Driver

Manufacturer: RENESAS
Manufacturer part #: HIP4082IBZT
Store part #: C50123
Package / case: SOIC-16
Category: Full, Half-Bridge (H Bridge) Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,144 in stock

#C50123

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
1+	₹357.40	₹357.40
10+	₹300.41	₹3,004.10
30+	₹264.73	₹7,941.90
100+	₹228.19	₹22,819.00
500+	₹211.65	₹1,05,825.00
1,000+	₹204.69	₹2,04,690.00

Quantity (min 1)

1 × ₹357.40

₹357.40

excl. GST

₹421.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HIP4082IBZT

₹357.40 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Logic Level - High: 2.5V
Input Logic Level - Low: 1V
Number of Drivers: 4
Quiescent Current(Iq): 2.3mA
Load Type: MOSFET
Current - Output High(IOH): 1.1A
Rise Time: 9ns
Fall Time: 9ns
Driven Configuration: Full bridge
Current - Output Low(IOL): 1.3A
Operating Temperature: -55℃~+125℃
Features: Enable shutdown;Dead-time control;Interleaved conduction protection
Voltage - Supply: 8.5V~15V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.388 g

Overview

The HIP4082 is a medium frequency, medium voltage H-Bridge N-Channel MOSFET driver IC, available in 16 lead plastic SOIC (N) and DIP packages. Specifically targeted for PWM motor control and UPS applications, bridge based designs are made simple and flexible with the HIP4082 H-bridge driver. With operation up to 80V, the device is best suited to applications of moderate power levels. Similar to the HIP4081, it has a flexible input protocol for driving every possible switch combination except those which would cause a shoot-through condition. The HIP4082’s reduced drive current allows smaller packaging and it has a much wider range of programmable dead times (0.1 to 4.5μs) making it ideal for switching frequencies up to 200kHz. The HIP4082 does not contain an internal charge pump, but does incorporate non-latching level-shift translation control of the upper drive circuits. This set of features and specifications is optimized for applications where size and cost are important. For applications needing higher drive capability the HIP4080A and HIP4081A are recommended.

Applications

UPS Systems
DC Motor Controls
Full Bridge Power Supplies
Switching Power Amplifiers
Noise Cancellation Systems
Battery Powered Vehicles
Peripherals
Medium/Large Voice Coil Motors

Key features

Independently Drives 4 N-Channel FET in Half Bridge or Full Bridge Configurations
Bootstrap Supply Max Voltage to 95VDC
Drives 1000pF Load in Free Air at 50°C with Rise and Fall Times of Typically 15ns
User-Programmable Dead Time (0.1 to 4.5μs)
DIS (Disable) Overrides Input Control and Refreshes Bootstrap Capacitor when Pulled Low
Input Logic Thresholds Compatible with 5V to 15V Logic Levels
Shoot-Through Protection
Undervoltage Protection
Pb-Free Plus Anneal Available (RoHS Compliant)
