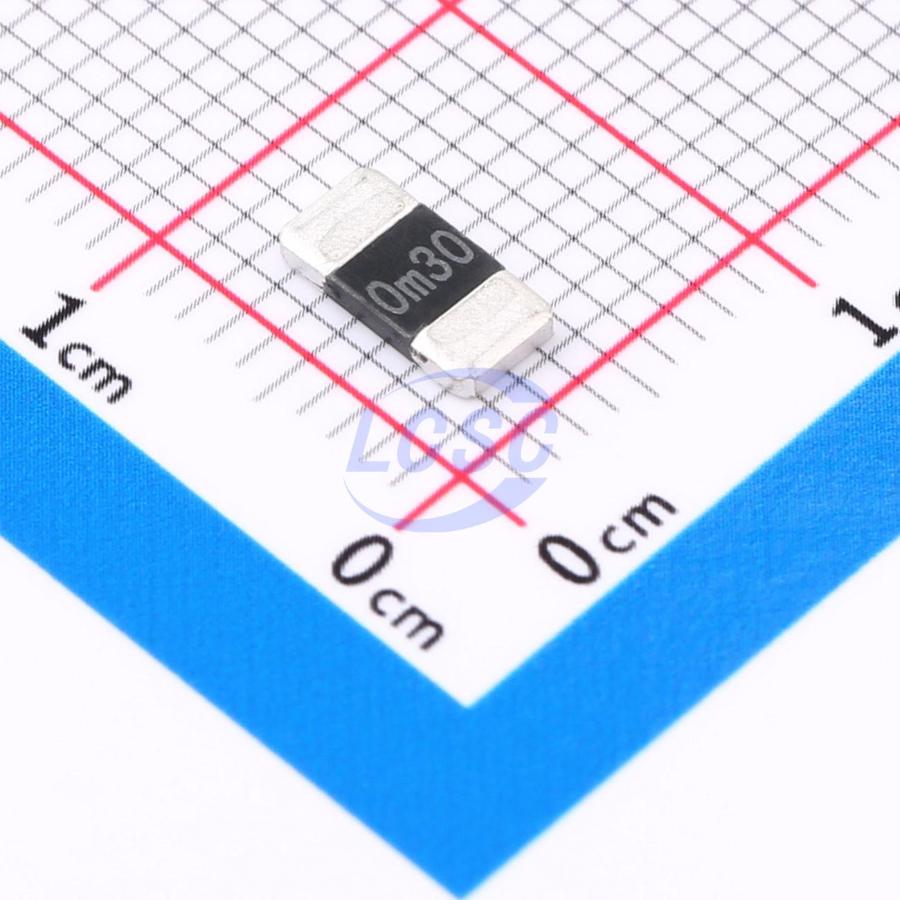

HoCG251230m30F4S Milliohm

HoCG251230m30F4S

0.3mΩ 3W 220V Alloy Resistor ±350ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS

2512ROHS CompliantActive

RES 0.3mΩ ±1% 3W 2512

Manufacturer: Milliohm
Manufacturer part #: HoCG251230m30F4S
Store part #: C49067822
Package / case: 2512
Category: Chip Resistor - Surface Mount
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,400 in stock

#C49067822

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.98	₹109.90
50+	₹17.37	₹868.50
150+	₹15.40	₹2,310.00
500+	₹12.94	₹6,470.00
2,500+	₹11.84	₹29,600.00
4,000+	₹11.18	₹44,720.00

Quantity (min 5, multiples of 5)

5 × ₹21.98

₹109.90

excl. GST

₹129.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

HoCG251230m30F4S

₹109.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Resistance: 0.3mΩ
Power(Watts): 3W
Voltage Rating: 220V
Type: Alloy Resistor
Temperature Coefficient: ±350ppm/℃
Tolerance: ±1%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.175 g

Overview

Applications

Power Modules
BMS Management Systems
Automatic Control Systems
Automotive Module Control Units
Variable Frequency Drives
Servo Drive Systems
Industrial Equipment

Key features

China's first alloy resistor manufacturer using high thermal conductivity epoxy resin.
Eco-friendly laser etching marking with superior appearance.
Alloy chip package with excellent solderability, reliability, and overload capability.
Stable performance, high precision, high reliability, and high stability.
Low TCR, ultra-low parasitic inductance, suitable for high-frequency AC current sensing.
RoHS and halogen-free compliant, AEC-Q200 qualified.

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	HoLRS2512-6W-0.3mR-1%#C55113223Milliohm · 2512	Milliohm	2512	255	₹24.18 · 255 in stock	View
