MilliohmDatasheet (PDF)
HoCG251230m50F4S

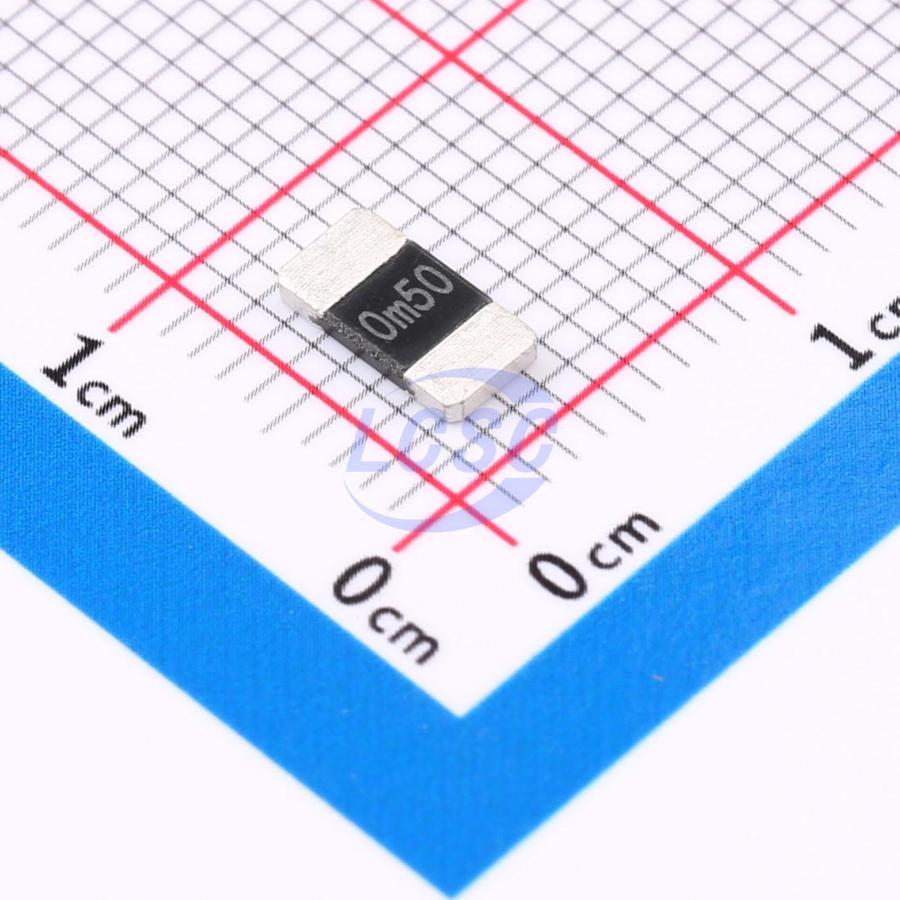

0.5mΩ 3W 220V Alloy Resistor ±150ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS CompliantActive
RES 0.5mΩ ±1% 3W 2512
- Manufacturer
- Milliohm
- Manufacturer part #
- HoCG251230m50F4S
- Store part #
- C49067823
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,495 in stock
#C49067823
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.46 | ₹112.30 |
| 50+ | ₹17.87 | ₹893.50 |
| 150+ | ₹15.90 | ₹2,385.00 |
| 500+ | ₹13.44 | ₹6,720.00 |
| 2,500+ | ₹12.36 | ₹30,900.00 |
| 4,000+ | ₹11.70 | ₹46,800.00 |
5 × ₹22.46
₹112.30
excl. GST
₹132.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HoCG251230m50F4S
₹112.30 for 5 + GST
Specifications
- Resistance
- 0.5mΩ
- Power(Watts)
- 3W
- Voltage Rating
- 220V
- Type
- Alloy Resistor
- Temperature Coefficient
- ±150ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.149 g
Overview
Applications
- Power Modules
- BMS Management Systems
- Automatic Control Systems
- Automotive Module Control Units
- Variable Frequency Drives
- Servo Drive Systems
- Industrial Equipment
Key features
- China's first alloy resistor manufacturer using high thermal conductivity epoxy resin.
- Eco-friendly laser etching marking with superior appearance.
- Alloy chip package with excellent solderability, reliability, and overload capability.
- Stable performance, high precision, high reliability, and high stability.
- Low TCR, ultra-low parasitic inductance, suitable for high-frequency AC current sensing.
- RoHS and halogen-free compliant, AEC-Q200 qualified.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HoLRS2512-5W-0.5mR-1%#C55113222Milliohm · 2512 | Milliohm | 2512 | 1,035 | ₹20.16 · 1,035 in stock | View |
 | HoLRS2512-6W-0.5mR-1%#C55113221Milliohm · 2512 | Milliohm | 2512 | 1,755 | ₹24.50 · 1,755 in stock | View |
