MilliohmDatasheet (PDF)
HoCG25123R001F4
1mΩ ±1% 3W
2512ROHS CompliantActive

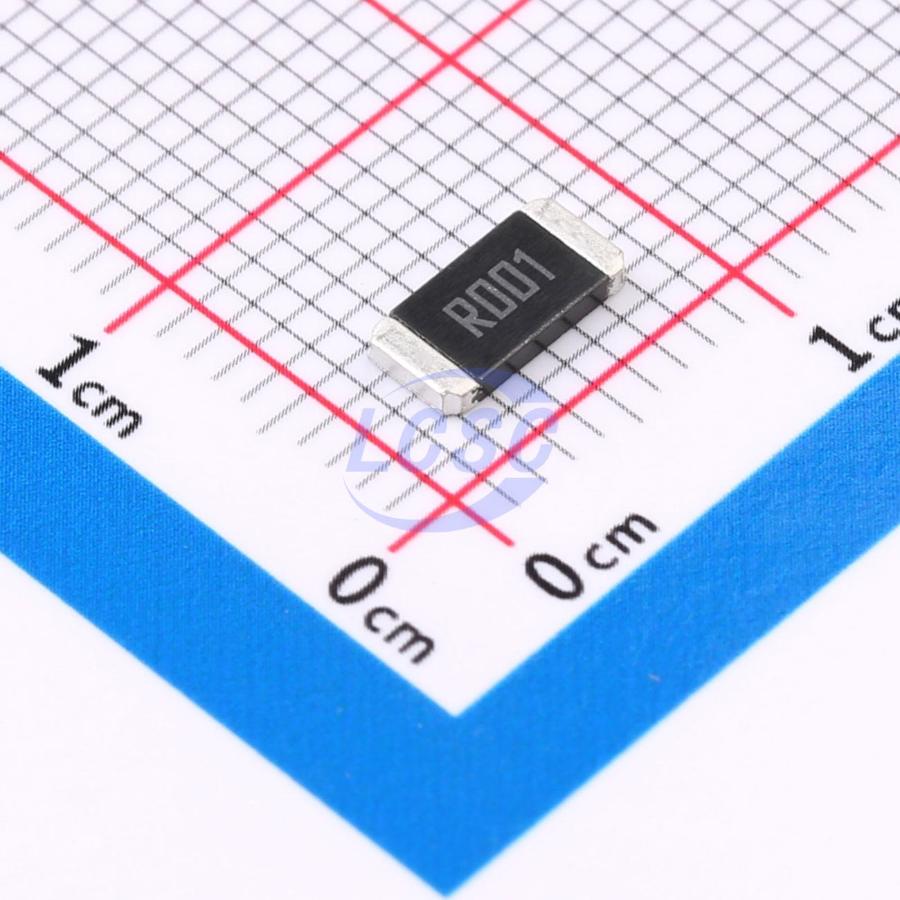

RES 1mΩ ±1% 3W 2512
- Manufacturer
- Milliohm
- Manufacturer part #
- HoCG25123R001F4
- Store part #
- C48972794
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
940 in stock
#C48972794
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.92 | ₹94.60 |
| 50+ | ₹14.96 | ₹748.00 |
| 150+ | ₹12.98 | ₹1,947.00 |
| 500+ | ₹11.50 | ₹5,750.00 |
| 2,500+ | ₹10.31 | ₹25,775.00 |
| 4,000+ | ₹9.71 | ₹38,840.00 |
5 × ₹18.92
₹94.60
excl. GST
₹111.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HoCG25123R001F4
₹94.60 for 5 + GST
Specifications
- Resistance
- 1mΩ
- Power(Watts)
- 3W
- Voltage Rating
- 220V
- Type
- Alloy Resistor
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.126 g
Overview
Applications
- Power Modules
- BMS Management Systems
- Automatic Control Systems
- Automotive Module Control Units
- Variable Frequency Drives
- Servo Drive Systems
- Industrial Equipment
Key features
- China's first alloy resistor manufacturer using high thermal conductivity epoxy resin.
- Eco-friendly laser etching marking with superior appearance.
- Alloy chip package with excellent solderability, reliability, and overload capability.
- Stable performance, high precision, high reliability, and high stability.
- Low TCR, ultra-low parasitic inductance, suitable for high-frequency AC current sensing.
- RoHS and halogen-free compliant, AEC-Q200 qualified.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HoLSX2512-5W-1mR-1%#C54563315Milliohm · 2512 | Milliohm | 2512 | 810 | ₹29.36 · 810 in stock | View |
 | HoLRS2512-5W-1mR-1%#C55113220Milliohm · 2512 | Milliohm | 2512 | 935 | ₹18.57 · 935 in stock | View |
 | HoSCG2512-3-R001-F-4#C22450698Milliohm · 2512 | Milliohm | 2512 | 2,595 | ₹18.35 · 2,595 in stock | View |
