MilliohmDatasheet (PDF)
HoFMF0204-0.25W-5.1R-1%-50ppm

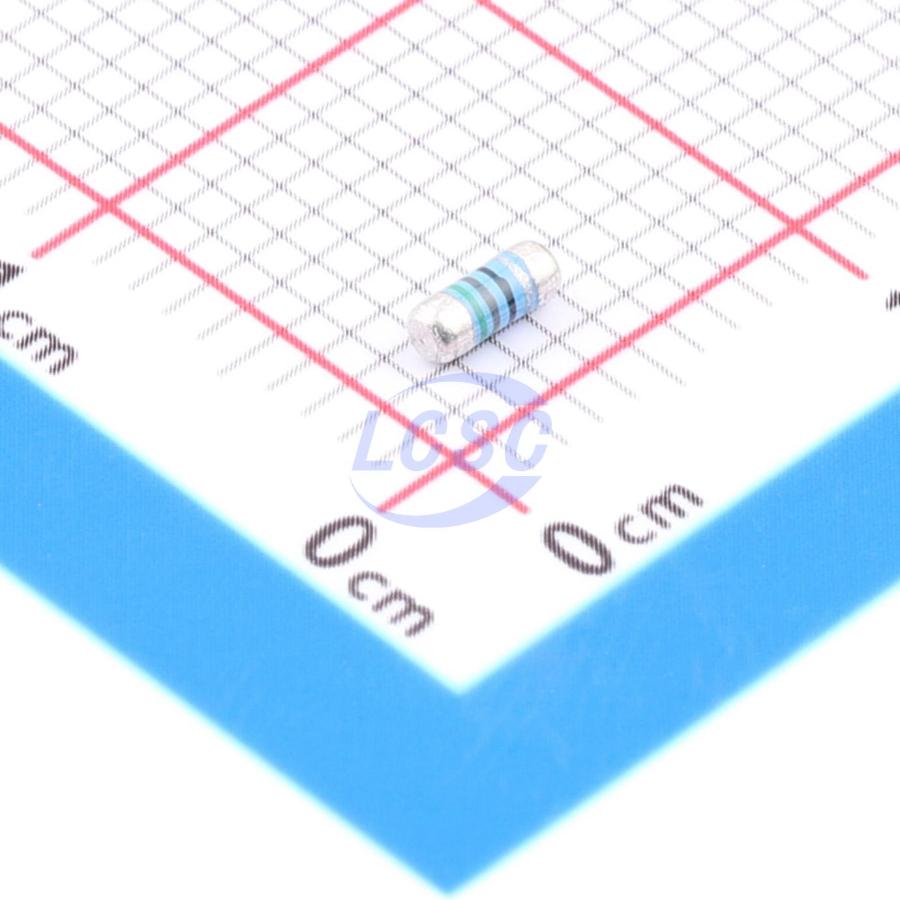

5.1Ω 250mW 200V Metal Film Resistor ±50ppm/℃ ±1% MELF-0204 Chip Resistor - Surface Mount
MELF-0204RoHSActive
- Manufacturer
- Milliohm
- Manufacturer part #
- HoFMF0204-0.25W-5.1R-1%-50ppm
- Store part #
- C53457610
- Package / case
- MELF-0204
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C53457610
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.29 | ₹105.80 |
| 200+ | ₹4.26 | ₹852.00 |
| 600+ | ₹3.73 | ₹2,238.00 |
| 3,000+ | ₹3.35 | ₹10,050.00 |
| 9,000+ | ₹3.03 | ₹27,270.00 |
| 21,000+ | ₹2.87 | ₹60,270.00 |
20 × ₹5.29
₹105.80
excl. GST
₹124.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HoFMF0204-0.25W-5.1R-1%-50ppm
₹105.80 for 20 + GST
Specifications
- Resistance
- 5.1Ω
- Power(Watts)
- 250mW
- Voltage Rating
- 200V
- Type
- Metal Film Resistor
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.072 g
Overview
Applications
- Communication equipment
- Automotive electronics
- Medical electronic devices
- Test & measurement equipment
Key features
- Advanced thin-film technology
- Power rating up to 2W and above
- Excellent stability
- Resistance tolerance down to ±0.1% and below
- Low TCR down to 15PPM/℃ and below
- Compatible with automated SMD assembly systems; suitable for automatic soldering via wave soldering and reflow soldering
- Every resistor tested with 5-second short-time overload (load voltage at 2.5 times rated working voltage or maximum short-time overload voltage)
