MilliohmDatasheet (PDF)
HoFMF0207-1W-1.1R-1%-50ppm

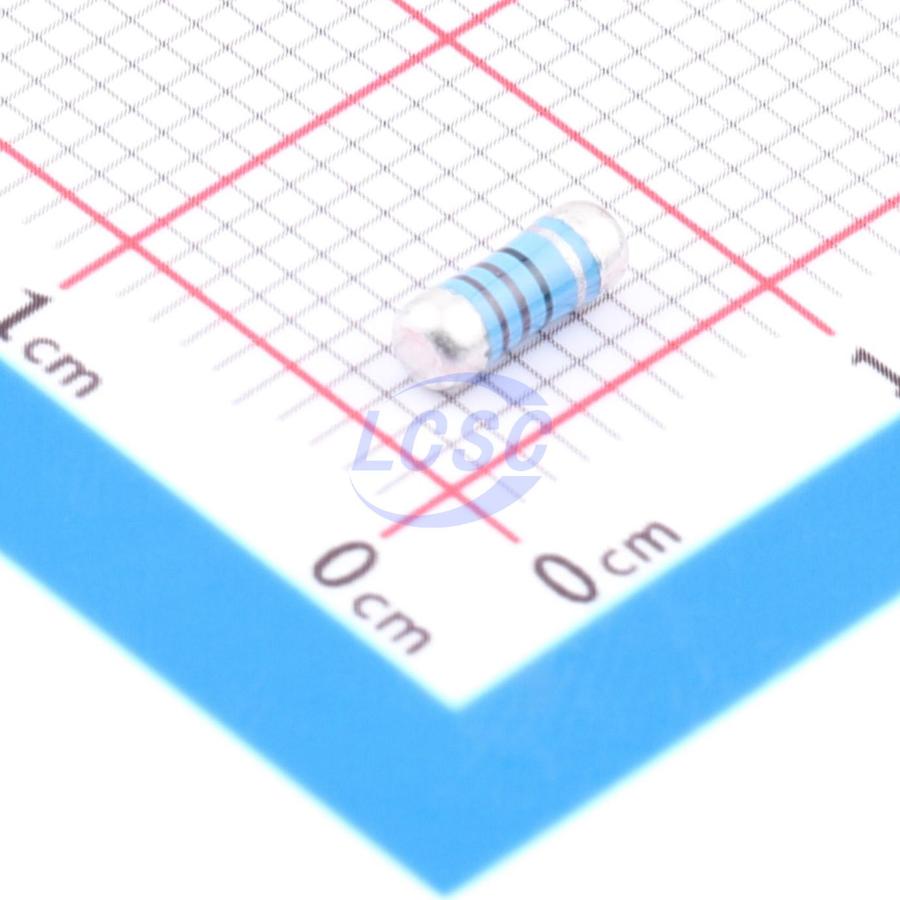

1W 1.1Ω 350V Metal Film Resistor ±50ppm/℃ ±1% MELF-0207 Chip Resistor - Surface Mount
MELF-0207RoHSActive
- Manufacturer
- Milliohm
- Manufacturer part #
- HoFMF0207-1W-1.1R-1%-50ppm
- Store part #
- C53457614
- Package / case
- MELF-0207
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C53457614
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹6.34 | ₹31.70 |
| 50+ | ₹6.20 | ₹310.00 |
| 150+ | ₹6.11 | ₹916.50 |
| 500+ | ₹6.03 | ₹3,015.00 |
5 × ₹6.34
₹31.70
excl. GST
₹37.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
HoFMF0207-1W-1.1R-1%-50ppm
₹31.70 for 5 + GST
Specifications
- Power(Watts)
- 1W
- Resistance
- 1.1Ω
- Voltage Rating
- 350V
- Operating Temperature
- -55℃~+155℃
- Type
- Metal Film Resistor
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.142 g
Overview
Applications
- Communication equipment
- Automotive electronics
- Medical electronic devices
- Test & measurement equipment
Key features
- Advanced thin-film technology
- Power rating up to 2W and above
- Excellent stability
- Resistance tolerance down to ±0.1% and below
- Low TCR down to 15PPM/℃ and below
- Compatible with automated SMD assembly systems; suitable for automatic soldering via wave soldering and reflow soldering
- Every resistor tested with 5-second short-time overload (load voltage at 2.5 times rated working voltage or maximum short-time overload voltage)
