MilliohmDatasheet (PDF)
HoFMF0309-1W-24R-0.1%-25ppm

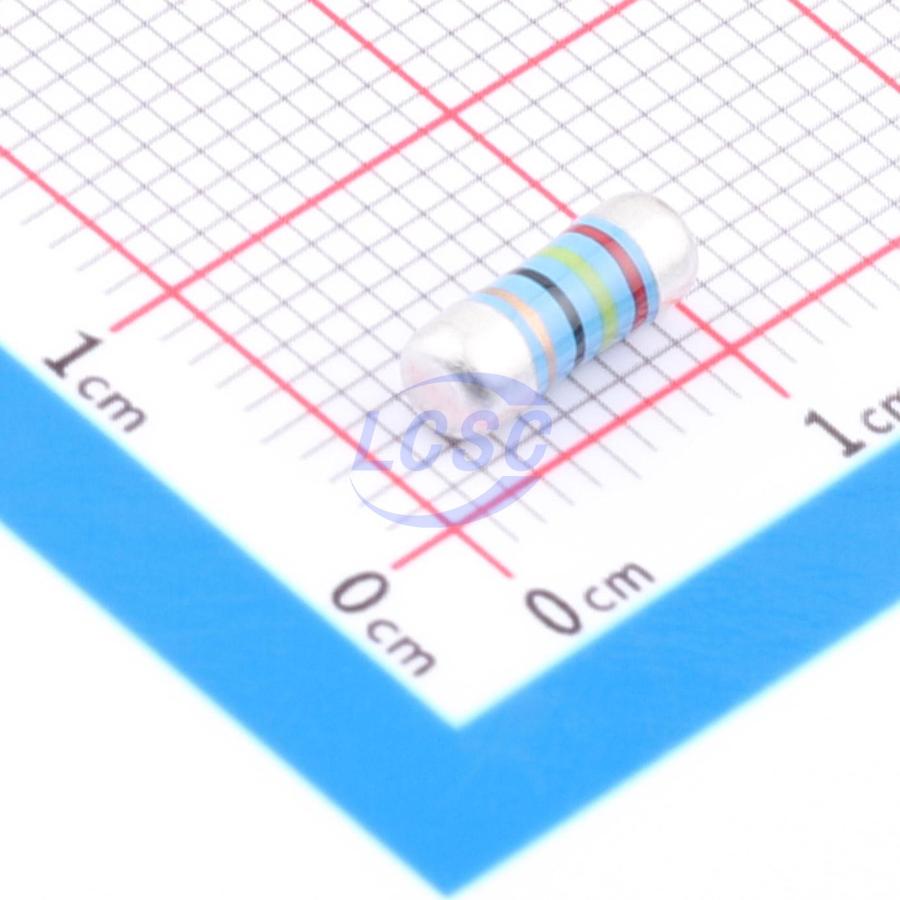

1W 24Ω 500V Metal Film Resistor ±25ppm/℃ ±0.1% MELF-0309 Chip Resistor - Surface Mount
MELF-0309RoHSActive
- Manufacturer
- Milliohm
- Manufacturer part #
- HoFMF0309-1W-24R-0.1%-25ppm
- Store part #
- C53457616
- Package / case
- MELF-0309
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C53457616
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.50 | ₹202.50 |
| 50+ | ₹31.86 | ₹1,593.00 |
| 150+ | ₹28.15 | ₹4,222.50 |
| 500+ | ₹23.54 | ₹11,770.00 |
| 2,500+ | ₹21.47 | ₹53,675.00 |
| 5,000+ | ₹20.24 | ₹1,01,200.00 |
5 × ₹40.50
₹202.50
excl. GST
₹238.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HoFMF0309-1W-24R-0.1%-25ppm
₹202.50 for 5 + GST
Specifications
- Power(Watts)
- 1W
- Resistance
- 24Ω
- Voltage Rating
- 500V
- Operating Temperature
- -55℃~+155℃
- Type
- Metal Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.98 g
Overview
Applications
- Communication equipment
- Automotive electronics
- Medical electronic devices
- Test & measurement equipment
Key features
- Advanced thin-film technology
- Power rating up to 2W and above
- Excellent stability
- Resistance tolerance down to ±0.1% and below
- Low TCR down to 15PPM/℃ and below
- Compatible with automated SMD assembly systems; suitable for automatic soldering via wave soldering and reflow soldering
- Every resistor tested with 5-second short-time overload (load voltage at 2.5 times rated working voltage or maximum short-time overload voltage)
