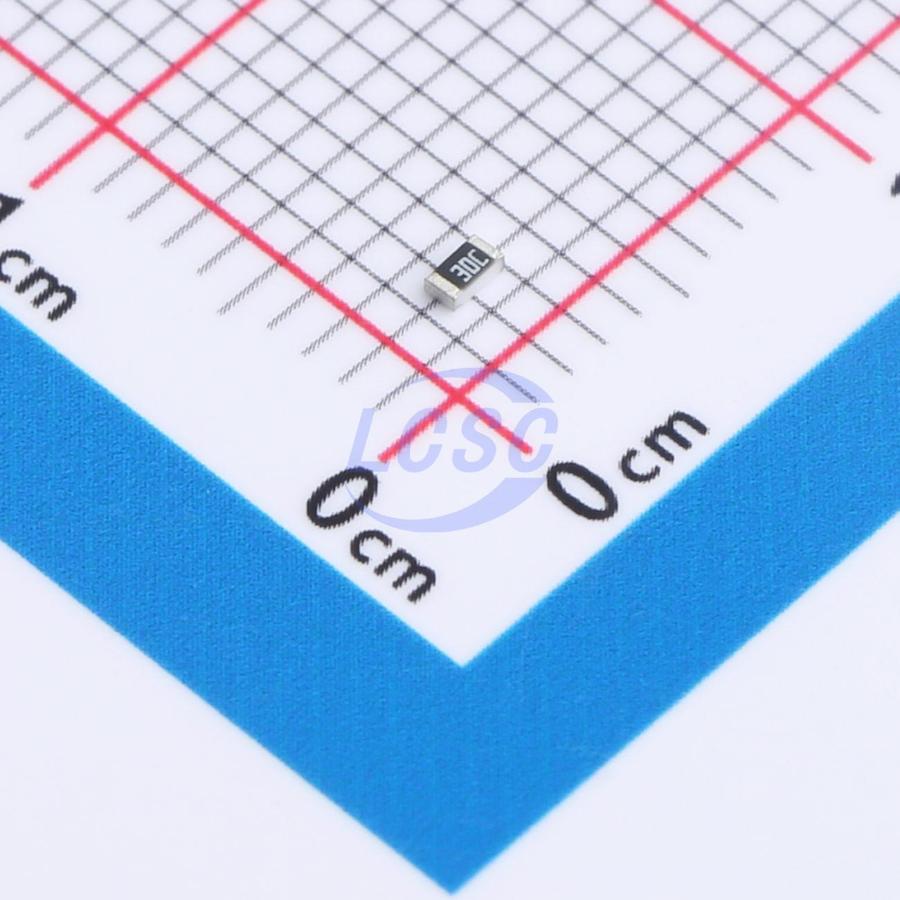

HPCR0603F20K0K9
20kΩ ±1% 125mW 0603 Thick Film Resistor AEC-Q200
RES 20kΩ ±1% 125mW 0603
- Manufacturer
- RESI
- Manufacturer part #
- HPCR0603F20K0K9
- Store part #
- C365117
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C365117
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.20 | ₹60.00 |
| 500+ | ₹0.9261 | ₹463.05 |
| 1,500+ | ₹0.7806 | ₹1,170.90 |
| 5,000+ | ₹0.635 | ₹3,175.00 |
| 25,000+ | ₹0.5689 | ₹14,222.50 |
| 50,000+ | ₹0.516 | ₹25,800.00 |
50 × ₹1.20
₹60.00
excl. GST
₹70.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
HPCR0603F20K0K9
₹60.00 for 50 + GST
Specifications
- Resistance
- 20kΩ
- Power(Watts)
- 125mW
- Voltage Rating
- 50V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+125℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.027 g
Overview
High-power thick-film chip resistors with resistance range from 0Ω to 10MΩ, accuracy up to ±0.1%, temperature coefficient of ±100 and ±200ppm/℃, and rated power from 0.5W to 5W. Suitable for instrumentation, consumer electronics, communications equipment, and power equipment. Through process improvements, high-power thick-film resistors can handle greater power than standard thick-film resistors of the same size, enabling better space savings while also improving pulse load capability. Replacing a standard thick-film resistor with a high-power thick-film resistor of the same size provides greater derating margin, contributing to improved long-term stability and enhanced reliability.
Applications
- Instrumentation
- Consumer Electronics
- Communications Equipment
- Power Equipment
Key features
- Rated power twice that of standard thick film resistors
- High reliability
- High stability
- Stable electrical performance
- Compatible with reflow and wave soldering
- RoHS compliant
