RESI

HPCR0805F180KK9

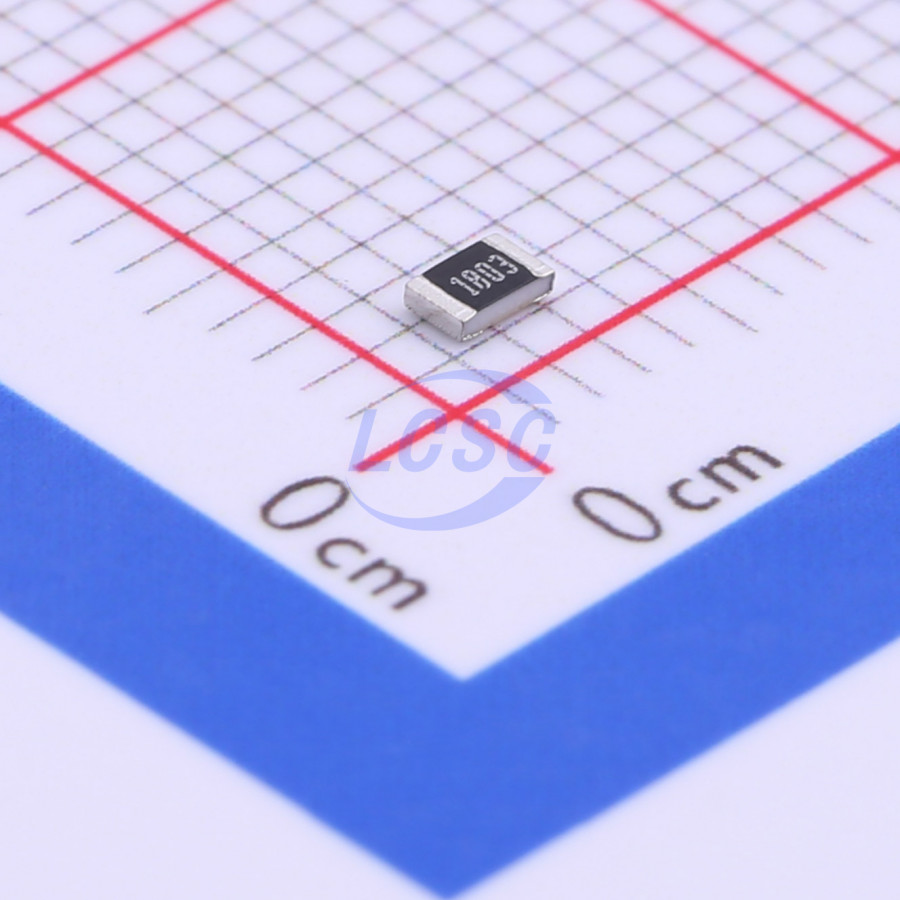

180kΩ 250mW 150V Thick Film Resistor ±100ppm/℃ ±1% 0805 Chip Resistor - Surface Mount RoHS

0805ROHS CompliantActive

RES 180kΩ ±1% 250mW 0805

Manufacturer: RESI
Manufacturer part #: HPCR0805F180KK9
Store part #: C365250
Package / case: 0805
Category: Chip Resistor - Surface Mount
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,300 in stock

#C365250

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
50+	₹2.25	₹112.50
500+	₹1.77	₹885.00
1,500+	₹1.52	₹2,280.00
5,000+	₹1.12	₹5,600.00
25,000+	₹0.9923	₹24,807.50
50,000+	₹0.9129	₹45,645.00

Quantity (min 50, multiples of 50)

50 × ₹2.25

₹112.50

excl. GST

₹132.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

HPCR0805F180KK9

₹112.50 for 50 + GST

Specifications

Resistance: 180kΩ
Power(Watts): 250mW
Voltage Rating: 150V
Operating Temperature: -55℃~+125℃
Type: Thick Film Resistor
Temperature Coefficient: ±100ppm/℃
Tolerance: ±1%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 50 (multiples of 50)
Unit weight: 0.032 g

Overview

High-power thick-film chip resistors with resistance range from 0Ω to 10MΩ, accuracy up to ±0.1%, temperature coefficient of ±100 and ±200ppm/℃, and rated power from 0.5W to 5W. Suitable for instrumentation, consumer electronics, communications equipment, and power equipment. Through process improvements, high-power thick-film resistors can handle greater power than standard thick-film resistors of the same size, enabling better space savings while also improving pulse load capability. Replacing a standard thick-film resistor with a high-power thick-film resistor of the same size provides greater derating margin, contributing to improved long-term stability and enhanced reliability.
