RESI

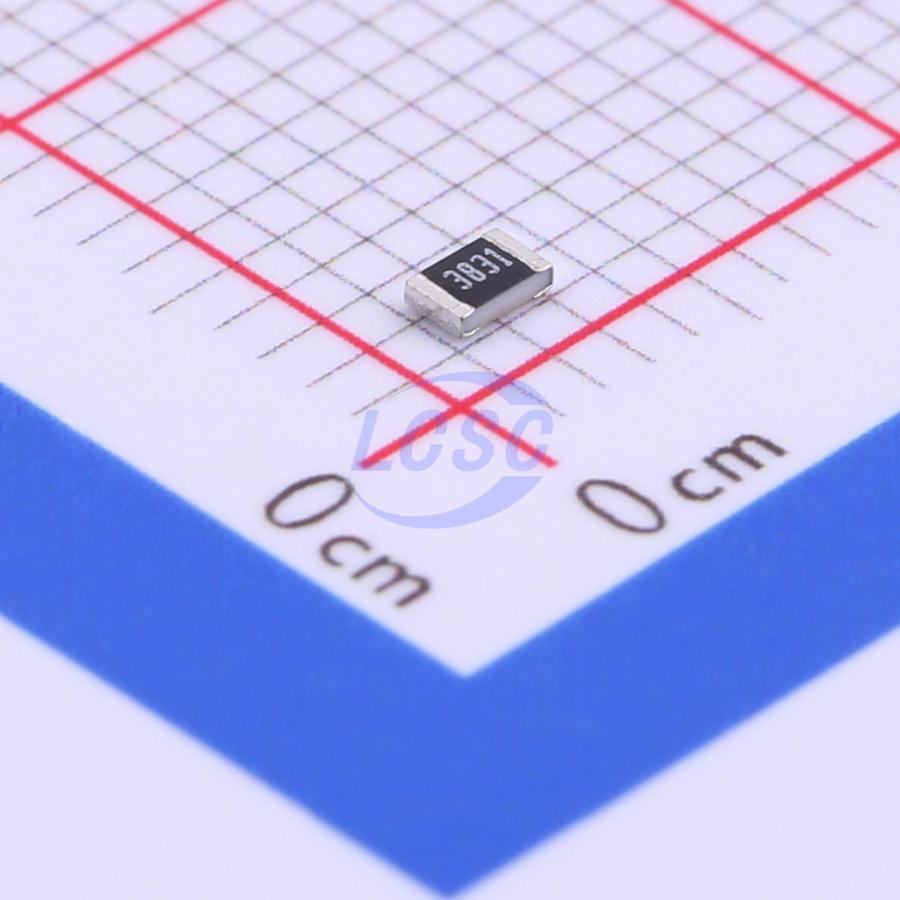

HPCR0805F3K83K9

3.83kΩ 250mW 150V Thick Film Resistor ±100ppm/℃ ±1% 0805 Chip Resistor - Surface Mount RoHS

0805ROHS CompliantActive

RES 3.83kΩ ±1% 250mW 0805

Manufacturer: RESI
Manufacturer part #: HPCR0805F3K83K9
Store part #: C365302
Package / case: 0805
Category: Chip Resistor - Surface Mount
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

100 in stock

#C365302

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
50+	₹1.07	₹53.50
500+	₹0.847	₹423.50
1,500+	₹0.726	₹1,089.00
5,000+	₹0.572	₹2,860.00
25,000+	₹0.517	₹12,925.00
50,000+	₹0.473	₹23,650.00
2,00,000+	₹0.462	₹92,400.00

Quantity (min 50, multiples of 50)

50 × ₹1.07

₹53.50

excl. GST

₹63.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

HPCR0805F3K83K9

₹53.50 for 50 + GST

Specifications

Resistance: 3.83kΩ
Power(Watts): 250mW
Voltage Rating: 150V
Operating Temperature: -55℃~+125℃
Type: Thick Film Resistor
Temperature Coefficient: ±100ppm/℃
Tolerance: ±1%

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 50 (multiples of 50)
Unit weight: 0.032 g

Overview

High-power thick-film chip resistors with resistance range from 0Ω to 10MΩ, accuracy up to ±0.1%, temperature coefficient of ±100 and ±200ppm/℃, and rated power from 0.5W to 5W. Suitable for instrumentation, consumer electronics, communications equipment, and power equipment. Through process improvements, high-power thick-film resistors can handle greater power than standard thick-film resistors of the same size, enabling better space savings while also improving pulse load capability. Replacing a standard thick-film resistor with a high-power thick-film resistor of the same size provides greater derating margin, contributing to improved long-term stability and enhanced reliability.
