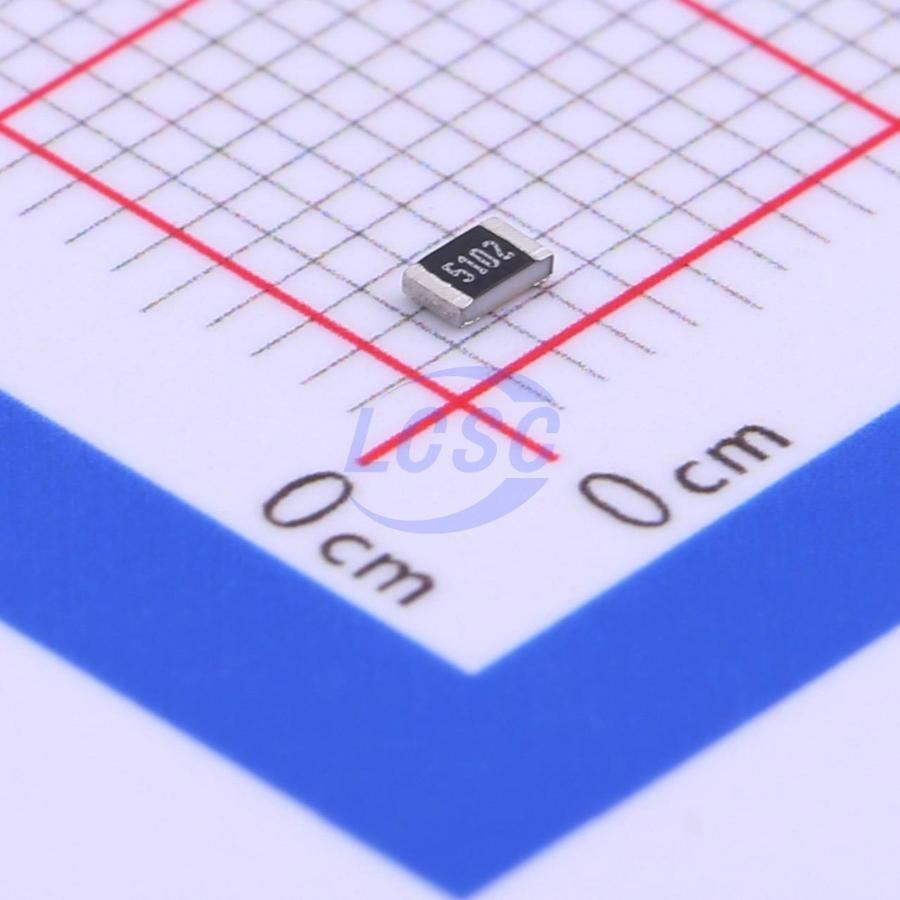

HPCR0805F51K0K9
250mW 51kΩ 150V Thick Film Resistor ±100ppm/℃ ±1% 0805 Chip Resistor - Surface Mount RoHS
RES 51kΩ ±1% 250mW 0805
- Manufacturer
- RESI
- Manufacturer part #
- HPCR0805F51K0K9
- Store part #
- C365321
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,600 in stock
#C365321
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.12 | ₹106.00 |
| 500+ | ₹1.65 | ₹825.00 |
| 1,500+ | ₹1.39 | ₹2,085.00 |
| 5,000+ | ₹1.12 | ₹5,600.00 |
| 25,000+ | ₹0.9923 | ₹24,807.50 |
| 50,000+ | ₹0.9129 | ₹45,645.00 |
50 × ₹2.12
₹106.00
excl. GST
₹125.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
HPCR0805F51K0K9
₹106.00 for 50 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 51kΩ
- Voltage Rating
- 150V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+125℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.032 g
Overview
High-power thick-film chip resistors with resistance range from 0Ω to 10MΩ, accuracy up to ±0.1%, temperature coefficient of ±100 and ±200ppm/℃, and rated power from 0.5W to 5W. Suitable for instrumentation, consumer electronics, communications equipment, and power equipment. Through process improvements, high-power thick-film resistors can handle greater power than standard thick-film resistors of the same size, enabling better space savings while also improving pulse load capability. Replacing a standard thick-film resistor with a high-power thick-film resistor of the same size provides greater derating margin, contributing to improved long-term stability and enhanced reliability.
Applications
- Instrumentation
- Consumer Electronics
- Communications Equipment
- Power Equipment
Key features
- Rated power twice that of standard thick film resistors
- High reliability
- High stability
- Stable electrical performance
- Compatible with reflow and wave soldering
- RoHS compliant
