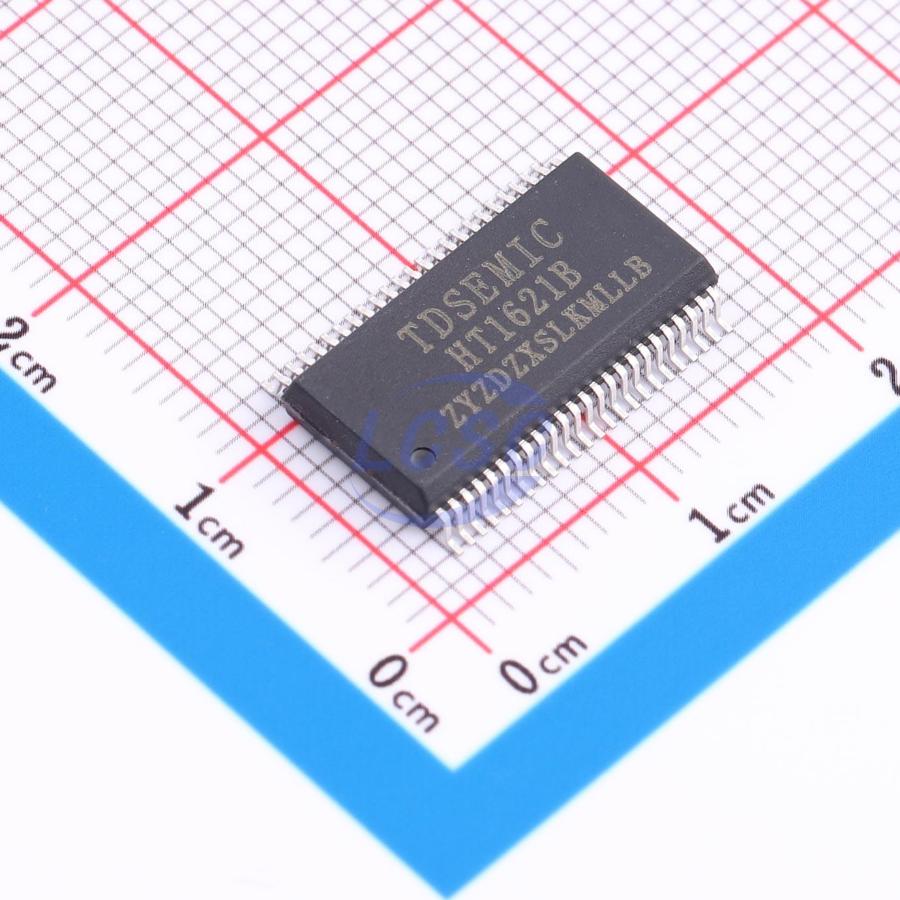

HT1621B-SSOP48-TD

The 1621B is a peripheral device for expanding MCU I/O ports. With a 32×4 display matrix, it is a 128-dot memory-mapped multi-function LCD driver circuit. The software features of the 1621B make it well-suited for LCD display applications, including LCD modules and display subsystems. The interface between the host controller and the 1621B requires only 3 or 4 ports. The Powerdown command reduces power consumption.

Key features

• Operating voltage: 2.4V~5.2V
• Built-in 256kHz RC oscillator
• External 32.768kHz crystal or 256kHz clock input
• 1/2 or 1/3 bias; 1/2, 1/3, or 1/4 duty cycle
• Internal Timebase frequency source
• Two selectable buzzer frequencies (2kHz/4kHz)
• Powerdown command for reduced power consumption
• Internal Time base and WDT watchdog circuit
• Timebase/WDT overflow output with 8 Timebase/WDT clock sources; 32×4 LCD driver
• 32×4-bit display RAM
• 3-wire serial interface
• Internal LCD drive frequency
• Software configurable
• Data mode and command mode instructions
• Auto-increment R/W address
• Three data access modes
• VLCD pin for LCD voltage adjustment; VLCD voltage must be less than or equal to VDD voltage
