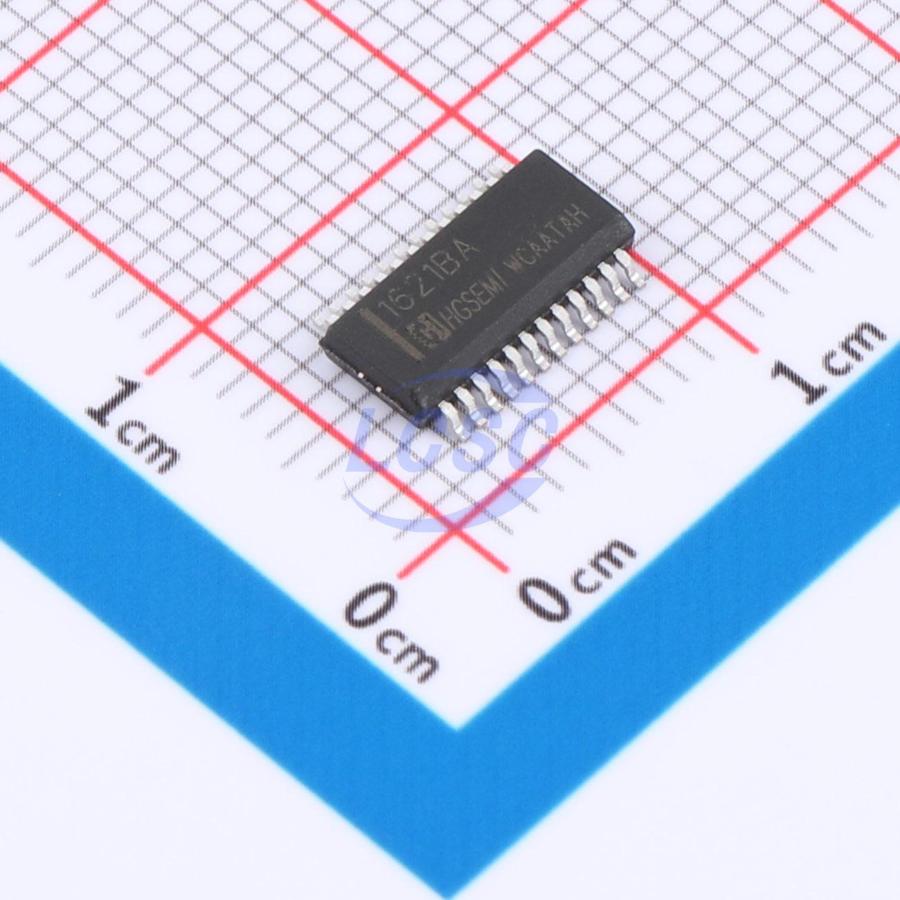

HT1621BADM/TR-HG

HT1621BA is a peripheral device designed to expand microcontroller I/O ports. Its display matrix is 32×4, forming a 128-dot memory-mapped multi-function LCD driver circuit. The software features of this device make it well-suited for LCD display applications, including LCD modules and display subsystems. Only 3 or 4 ports are required for the interface with the host controller. Power consumption can be reduced via the power-down command.

Applications

• Two-wheel electric bicycles
• Central air conditioning control panels
• Instrumentation
• Health measurement products
• Home appliances

Key features

• Operating voltage range: 2.4V ~ 5.0V
• Built-in 256kHz RC oscillator circuit
• Supports external 32.768kHz crystal or 256kHz clock input
• Supports 1/2 or 1/3 bias, and 1/2, 1/3, or 1/4 duty cycle
• Built-in time base frequency source
• Two buzzer frequency options (2kHz/4kHz)
• Power-down command for reduced power consumption
• Built-in time base and watchdog timer circuit with overflow output
• 8 time base/watchdog timer clock source options
• 32×4-bit LCD driver and display RAM
• 3-wire serial interface
• LCD drive frequency software-configurable
• Supports data mode and command mode instructions
• Supports auto-increment read/write addressing
• Three data access modes
• LCD voltage adjustable via VLCD pin; VLCD voltage must be less than or equal to VDD voltage
