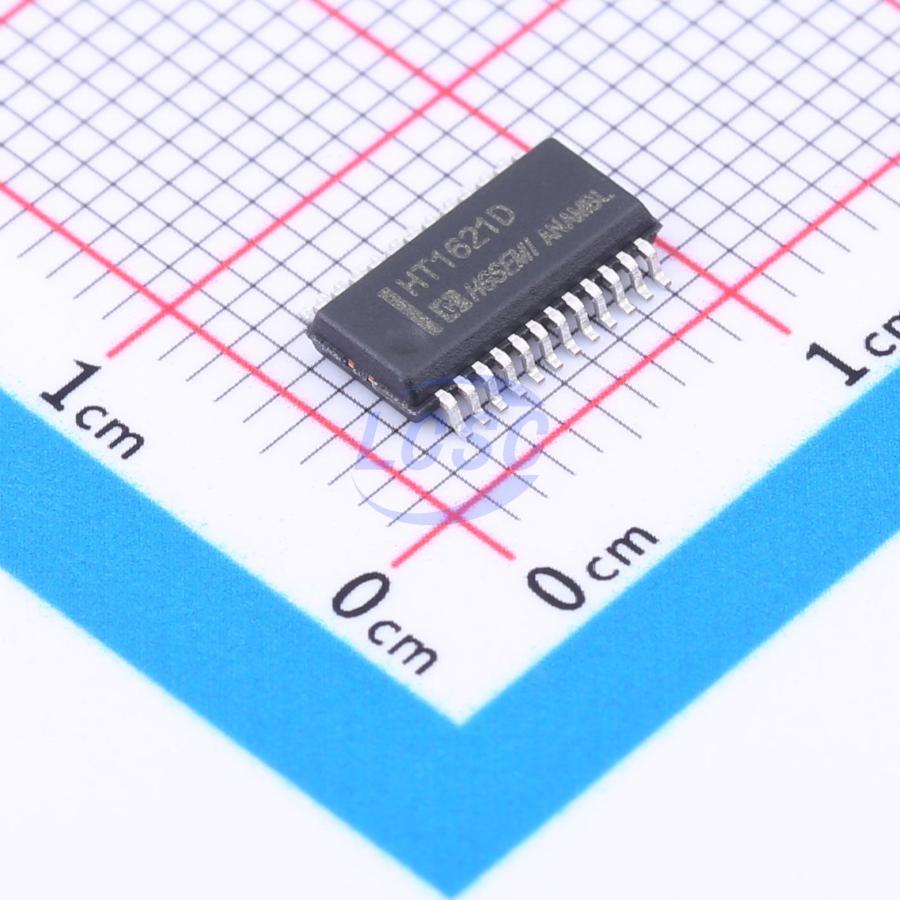

HT1621DM/TR
2.4V~5.2V 32 Segment 3-Wire Serial Interface 60uA SSOP-24-150mil Display Drivers
SSOP-24-150milRoHSActive
LCD control and drive circuit
- Manufacturer
- HGSEMI
- Manufacturer part #
- HT1621DM/TR
- Store part #
- C910857
- Package / case
- SSOP-24-150mil
- Category
- Display Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
105 in stock
#C910857
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.87 | ₹134.35 |
| 50+ | ₹21.39 | ₹1,069.50 |
| 150+ | ₹19.04 | ₹2,856.00 |
| 500+ | ₹16.11 | ₹8,055.00 |
| 2,500+ | ₹13.30 | ₹33,250.00 |
| 5,000+ | ₹12.52 | ₹62,600.00 |
5 × ₹26.87
₹134.35
excl. GST
₹158.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT1621DM/TR
₹134.35 for 5 + GST
Specifications
- Voltage - Supply
- 2.4V~5.2V
- Frequency
- 256kHz
- Operating Temperature
- -25℃~+75℃
- Display Configurations(bit)
- 32x4 bit
- Display Configurations(Segment)
- 32 Segment
- Interface
- 3-Wire Serial Interface
- Features
- Built-in oscillator
- Quiescent Current (Iq)
- 0.1uA
- Current - Supply
- 60uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.309 g
Overview
The HT1621 is a peripheral device used to expand microcontroller I/O ports. Its display matrix is 32×4, forming a 128-dot memory-mapped multi-function LCD driver circuit. The software features of this device make it well-suited for LCD display applications, including LCD modules and display subsystems. The interface between the host controller and the HT1621 requires only 3 or 4 ports. A power-down command is available to reduce power consumption.
Key features
- Operating voltage: 2.4 V ~ 5.2 V
- Built-in 256 kHz RC oscillator circuit
- Supports external 32.768 kHz crystal or 256 kHz clock input
- Supports 1/2 or 1/3 bias, 1/2, 1/3, or 1/4 duty cycle
- Internal time-base frequency source
- Two selectable buzzer frequencies (2 kHz/4 kHz)
- Power-down command for reduced power consumption
- Internal time-base and watchdog timer circuit with time-base/watchdog overflow output
- 8 time-base/watchdog clock sources
- 32×4 LCD driving capability
- 32×4-bit display RAM
- 3-wire serial interface
- Internal LCD drive frequency
- Software configurable
- Data mode and command mode instructions
- Auto-increment read/write address
- Three data access modes
- LCD voltage adjustment via VLC pin
- Available in LQFP-44, SSOP-48, LQFP-48, SSOP-24/QSOP-24 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HG1621BDM/TR#C2835197HGSEMI · SSOP-24-150mil | HGSEMI | SSOP-24-150mil | 2,785 | ₹25.27 · 2,785 in stock | View |
