TDSEMICDatasheet (PDF)

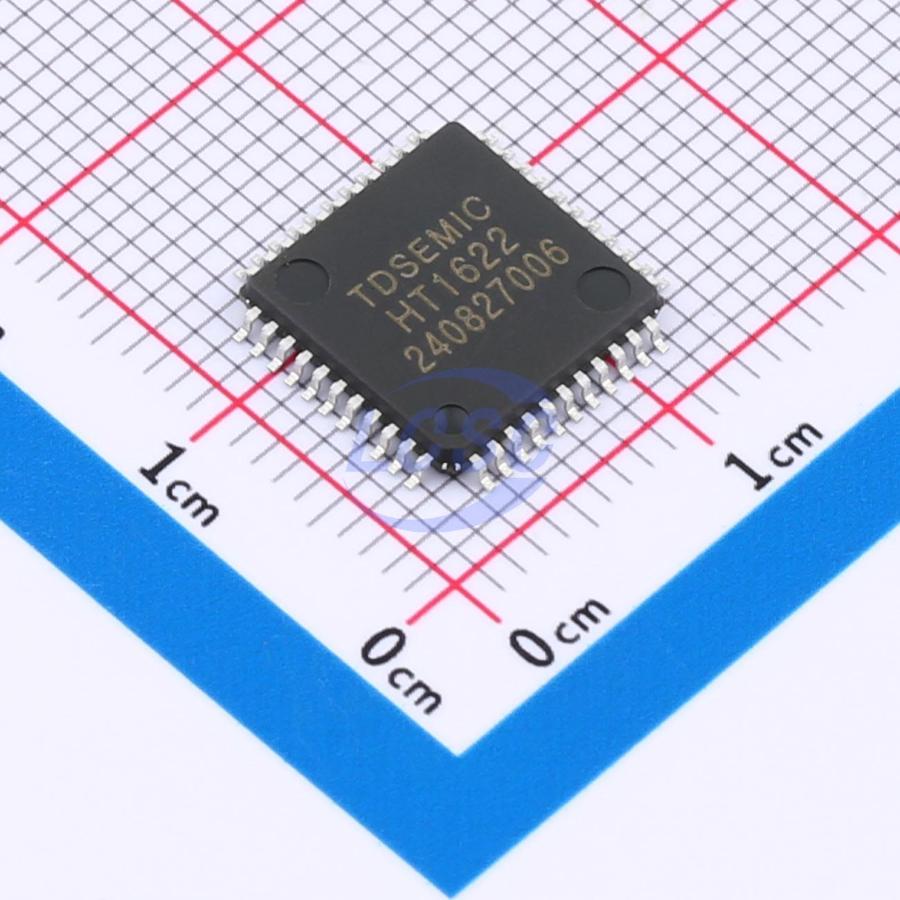

HT1622-LQFP44(7*7)-TD
2.7V~5.2V 32 Segment 3-Wire Serial Interface 80uA LQFP-44(7x7) Display Drivers RoHS
LQFP-44(7x7)ROHS CompliantActive
256-dot matrix memory-mapped multi-function LCD driver circuit
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT1622-LQFP44(7*7)-TD
- Store part #
- C42421888
- Package / case
- LQFP-44(7x7)
- Category
- Display Drivers
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
923 in stock
#C42421888
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹42.72 | ₹42.72 |
| 10+ | ₹37.30 | ₹373.00 |
| 30+ | ₹35.13 | ₹1,053.90 |
| 160+ | ₹32.31 | ₹5,169.60 |
| 480+ | ₹31.01 | ₹14,884.80 |
| 960+ | ₹30.14 | ₹28,934.40 |
1 × ₹42.72
₹42.72
excl. GST
₹50.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 160 per tray
HT1622-LQFP44(7*7)-TD
₹42.72 for 1 + GST
Specifications
- Voltage - Supply
- 2.7V~5.2V
- Frequency
- 32kHz
- Operating Temperature
- -25℃~+75℃
- Display Configurations(bit)
- 32x8 bit
- Display Configurations(Segment)
- 32 Segment
- Interface
- 3-Wire Serial Interface
- Features
- Integrated boost circuit;Built-in oscillator
- Quiescent Current (Iq)
- 1uA
- Current - Supply
- 80uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tray
- Standard pack
- 160 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.33 g
Overview
HT1622 is a 256-pattern memory-mapped multi-function LCD driver. The S/W architecture of HT1622-LQFP44(7*7)-TD makes it suitable for dot-matrix LCD displays, including LCD modules and display subsystems. The HT1622-LQFP44(7*7)-TD features a power-down function.
Key features
- Operating voltage: 2.7V~5.2V
- Built-in 32kHz RC oscillator circuit
- 1/4 bias, 1/8 duty cycle, display frequency 64Hz
- Internal resistor-type bias voltage generation circuit
- Two buzzer frequencies selectable (2kHz/4kHz)
- Power down command reduces power consumption
- Internal time base and WDT watchdog circuit
- Time base/WDT overflow output with 8 time base/WDT clock sources
- Maximum 32×8 LCD drive
- Power down instruction reduces power consumption
- 3-wire serial interface
- Designated control operations
- Data mode and command mode instructions
- R/W address auto-increment
- Three data access modes
- VLCD pin for LCD voltage adjustment
- Package: 64 QFP/LQFP, 44/52 LQFP
