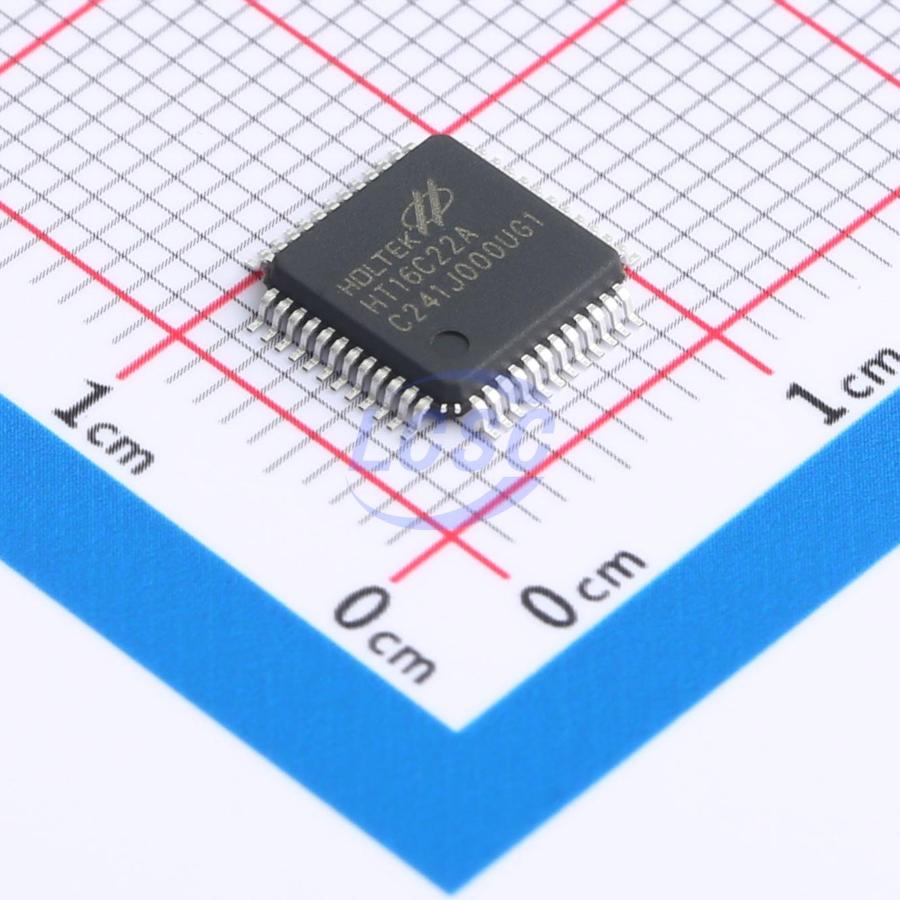

HT16C22A LQFP-48
2.4V~5.5V 44 segments I²C 18uA LQFP-48(7x7) Display Drivers
LQFP-48(7x7)RoHSActive
RAM-mapped 44×4 LCD controller/driver
- Manufacturer
- HOLTEK
- Manufacturer part #
- HT16C22A LQFP-48
- Store part #
- C5382711
- Package / case
- LQFP-48(7x7)
- Category
- Display Drivers
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,347 in stock
#C5382711
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.51 | ₹89.51 |
| 10+ | ₹73.94 | ₹739.40 |
| 30+ | ₹66.37 | ₹1,991.10 |
| 250+ | ₹58.81 | ₹14,702.50 |
| 500+ | ₹54.06 | ₹27,030.00 |
| 1,000+ | ₹51.89 | ₹51,890.00 |
1 × ₹89.51
₹89.51
excl. GST
₹105.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 250 per tray
HT16C22A LQFP-48
₹89.51 for 1 + GST
Specifications
- Voltage - Supply
- 2.4V~5.5V
- Frequency
- 32kHz
- Operating Temperature
- -40℃~+85℃
- Display Configurations(bit)
- 44x4 bit
- Display Configurations(Segment)
- 44 segments
- Interface
- I²C
- Features
- Integrated boost circuit;Built-in oscillator
- Current - Supply
- 18uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tray
- Standard pack
- 250 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.185 g
Overview
HT16C22A/HT16C22AG is a memory-mapped, multi-function LCD controller/driver IC. This series supports a display mode of 176 dots (44×4). Software-configurable features make it suitable for a wide range of LCD applications, including LCD modules and display subsystems. Communication with most microprocessors/microcontrollers is achieved via a two-wire bidirectional I2C interface.
Applications
- Electricity meter
- Water meter
- Gas meter
- Heat energy meter
- Home appliances
- Game consoles
- Telephones
- Consumer electronics
Key features
- Operating voltage: 2.4V~5.5V
- Internal 32kHz RC oscillator
- Bias: 1/2 or 1/3; Duty: 1/4
- Internal LCD bias generator with voltage follower
- I2C interface
- Two selectable LCD frame frequencies: 80Hz or 160Hz
- Up to 44×4-bit RAM for display data storage
- Maximum display mode 44×4: 44 SEG and 4 COM
- Multiple blinking modes
- Auto-increment read/write address
- Built-in 16-level VLCD voltage adjustment circuit
- Low power consumption
- VLCD pin for LCD operating voltage adjustment
- Silicon-gate CMOS process
- Package types: 48/52-pin LQFP and COG
