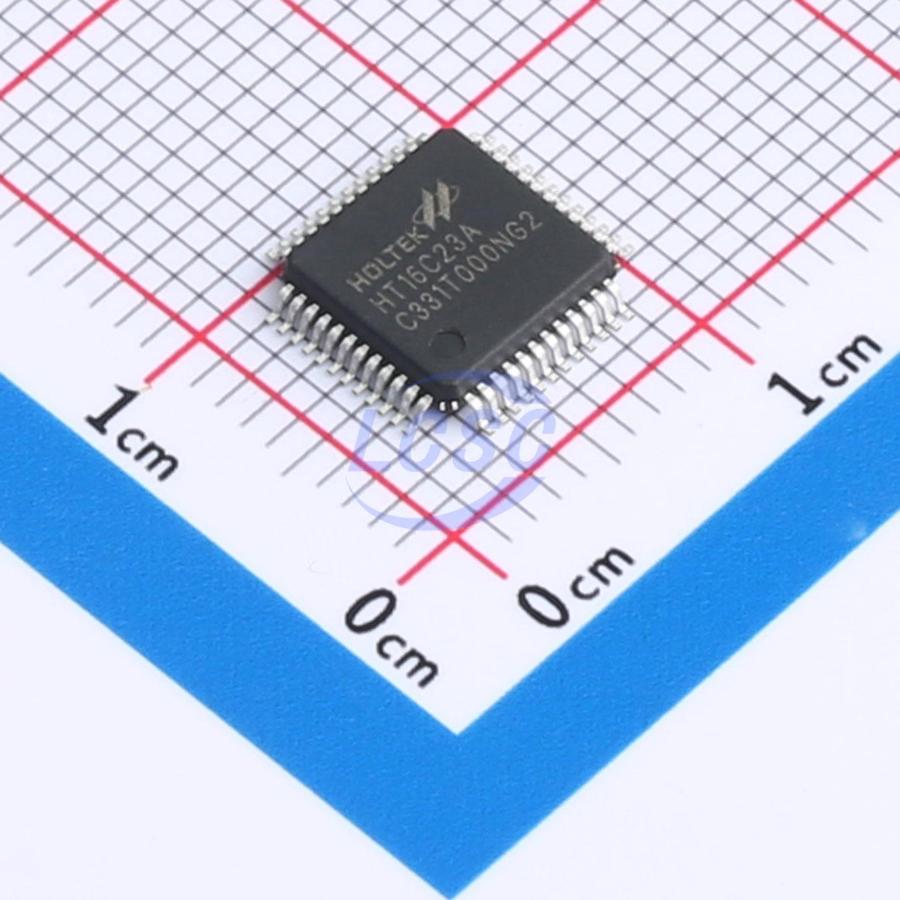

HT16C23A-48LQFP
2.4V~5.5V 52 segments I²C 25uA LQFP-48(7x7) Display Drivers
LQFP-48(7x7)RoHSActive
RAM-mapped 56×4/52×8 LCD driver controller
- Manufacturer
- HOLTEK
- Manufacturer part #
- HT16C23A-48LQFP
- Store part #
- C5444719
- Package / case
- LQFP-48(7x7)
- Category
- Display Drivers
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
729 in stock
#C5444719
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.33 | ₹91.33 |
| 10+ | ₹73.97 | ₹739.70 |
| 30+ | ₹65.29 | ₹1,958.70 |
| 250+ | ₹56.62 | ₹14,155.00 |
| 500+ | ₹51.41 | ₹25,705.00 |
| 1,000+ | ₹48.59 | ₹48,590.00 |
1 × ₹91.33
₹91.33
excl. GST
₹107.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per tray
HT16C23A-48LQFP
₹91.33 for 1 + GST
Specifications
- Voltage - Supply
- 2.4V~5.5V
- Frequency
- 32kHz
- Operating Temperature
- -40℃~+85℃
- Display Configurations(bit)
- 52x8 bit
- Display Configurations(Segment)
- 52 segments
- Interface
- I²C
- Features
- Integrated boost circuit;Built-in oscillator
- Current - Supply
- 25uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tray
- Standard pack
- 250 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
HT16C23A/HT16C23AG is a memory-mapped, multi-function LCD controller/driver chip. The display capacity of this series is 224 segments (56 SEG × 4 COM) or 416 segments (52 SEG × 8 COM). The software-configurable features of this series make it suitable for a wide range of LCD applications, including LCD modules and display subsystems. This series communicates with most microprocessors or microcontrollers via a two-wire bidirectional I2C interface.
Applications
- Electricity meters
- Water meters
- Gas meters
- Heat energy meters
- Home appliances
- Game consoles
- Telephones
- Consumer electronics
Key features
- Operating voltage: 2.4V~5.5V
- Internal 32kHz RC oscillator
- Bias: 1/3 or 1/4; Duty: 1/4 or 1/8
- Internal LCD bias generator with voltage follower
- I2C bus interface
- Two selectable LCD frame frequencies: 80Hz or 160Hz
- Up to 52×8 bits RAM for display data storage
- Display modes: 56×4 mode: 56 SEG×4 COM; 52×8 mode: 52 SEG×8 COM
- Multiple blinking modes
- Auto-increment read/write address
- Built-in 16-level VLCD voltage adjustment circuit
- Low power consumption
- VLCD pin for LCD operating voltage adjustment
- Silicon-gate CMOS process
- Package types: 48/64-pin LQFP and COG
