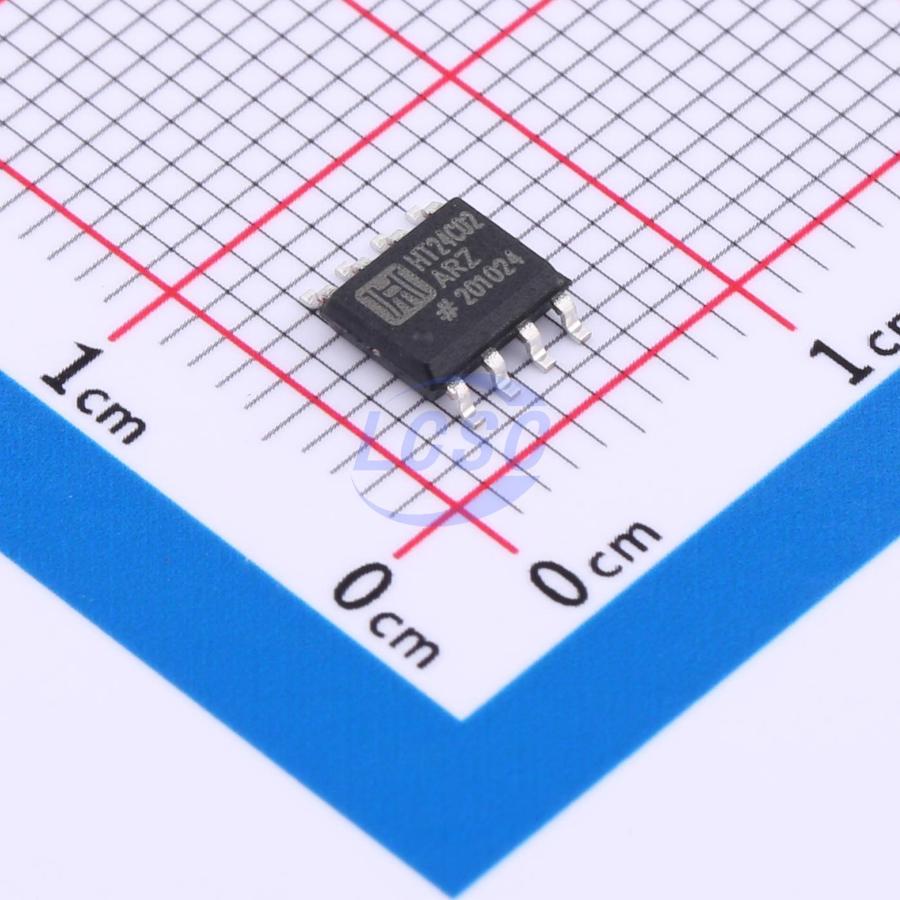

HT24C02ARZ
2Kbit 1MHz I2C SOP-8 Memory
2K-bit Serial Read/Write Non-Volatile Memory
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,840 in stock
#C2976647
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹12.25 | ₹122.50 |
| 100+ | ₹10.16 | ₹1,016.00 |
| 300+ | ₹9.13 | ₹2,739.00 |
| 2,500+ | ₹6.71 | ₹16,775.00 |
| 5,000+ | ₹6.09 | ₹30,450.00 |
| 10,000+ | ₹5.77 | ₹57,700.00 |
10 × ₹12.25
₹122.50
excl. GST
₹144.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT24C02ARZ
₹122.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.8V~5.5V;5mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.238 g
Overview
The HT24C02 is a 2K-bit serial read/write nonvolatile memory device using the CMOs floating gate process. Its 2048 bits of memory are organized into 256 words and each word is 8 bits. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. Up to eight HT24C02 devices may be connected to the same 2-wire bus. The HT24C02 is guaranteed for 1M erase/write cycles and 40-year data retention.
Key features
- Operating voltage: 1.8V ~ 5.5V for temperature -40℃ to +85℃
- Low power consumption - Operation: 5mA max. - Standby: 3μA max.
- Internal organization: 256 x 8
- 2-wire serial interface
- Write cycle time: 5ms max.
- Automatic erase-before-write operation
- Partial page write allowed
- 8-byte Page write modes
- Write operation with built-in timer
- Hardware controlled write protection
- 40-year data retention 10^6 erase/write cycles per word
- 8-pin DIP/SOP/TSSOP package
