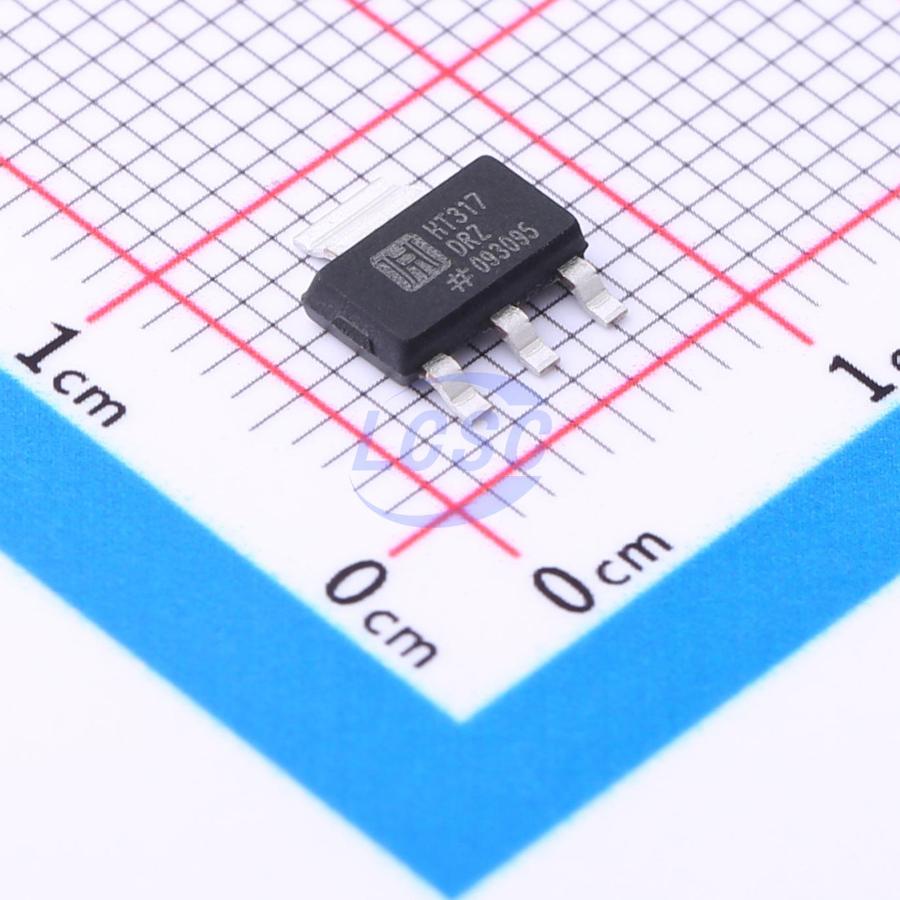

HT317ARDZ
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A SOT-223
SOT-223RoHSActive
Three-terminal adjustable output positive voltage regulator
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT317ARDZ
- Store part #
- C2898742
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,190 in stock
#C2898742
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.74 | ₹198.70 |
| 50+ | ₹31.53 | ₹1,576.50 |
| 150+ | ₹28.01 | ₹4,201.50 |
| 500+ | ₹23.62 | ₹11,810.00 |
| 2,500+ | ₹18.46 | ₹46,150.00 |
| 5,000+ | ₹17.28 | ₹86,400.00 |
5 × ₹39.74
₹198.70
excl. GST
₹234.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT317ARDZ
₹198.70 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Output Configuration
- Positive
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.09 g
Overview
The HT317A is adjustable 3- terminal positive voltage regulator capable of supplying in excess of 1.5 A over an output voltage range of 1.2 V to 37 V. These voltage regulator is exceptionally easy to use and require only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making them essentially blow- out proof. The HT317A serve a wide variety of applications to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the HT317A series can be used as a precision current regulator.
Applications
- Make a programmable output regulator
- Precision current regulator
Key features
- Output Current in Excess of 1.5 Ampere
- Output Adjustable between 1.2 V and 37 V
- Internal Thermal Overload Protection
- Internal Short - Circuit Current Limiting Constant with Temperature
- Output Transistor Safe- Area Compensation
- Floating Operation for High Voltage Applications
- Standard 3- lead Transistor Packages
- Eliminates Stocking Many Fixed
