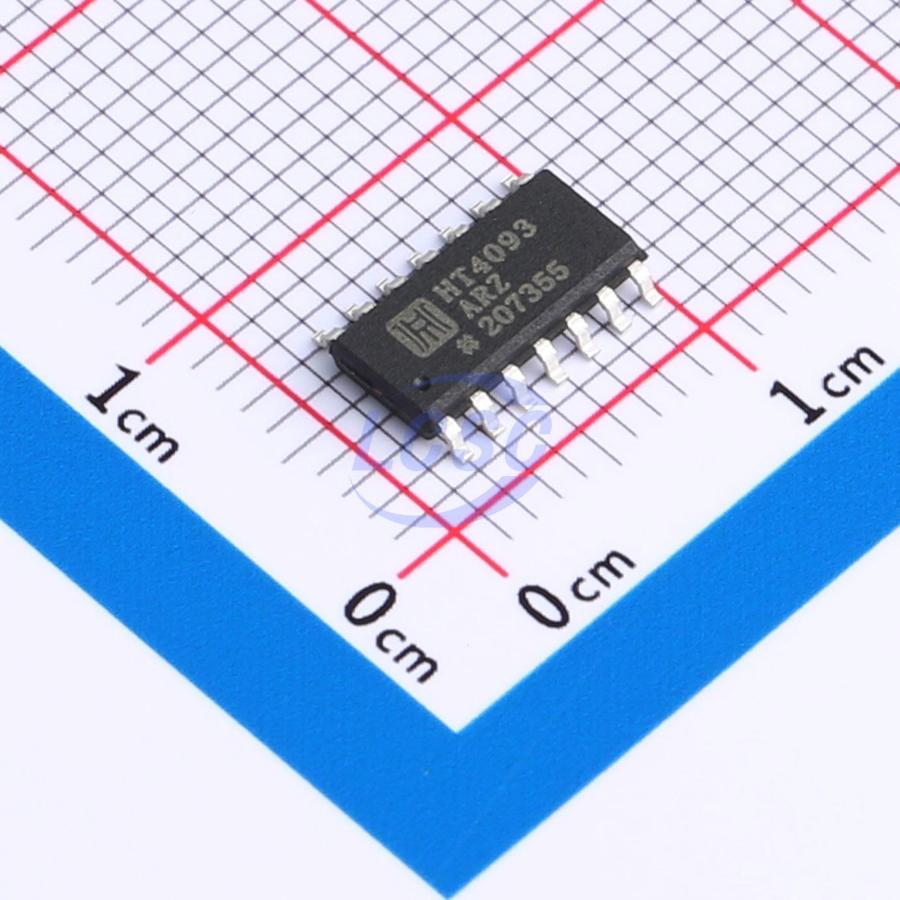

HT4093ARZ

The HT4093A Schmitt trigger is constructed with MOS P−channel and N−channel enhancement mode devices in a single monolithic structure. These devices find primary use where low power dissipation and/or high noise immunity is desired. The HT4093A may be used in place of the HT4011A quad 2−input NAND gate for enhanced noise immunity or to “square up” slowly changing

Key features

• Supply Voltage Range = 3.0 Vdc to 18 Vdc
• Capable of Driving Two Low−Power TTL Loads or One Low−Power Schottky TTL Load Over the Rated Temperature Range
• Triple Diode Protection on All Inputs
• Pin−for−Pin Compatible with CD4093
• Can be Used to Replace HT4011A
• Independent Schmitt−Trigger at each Input
• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
