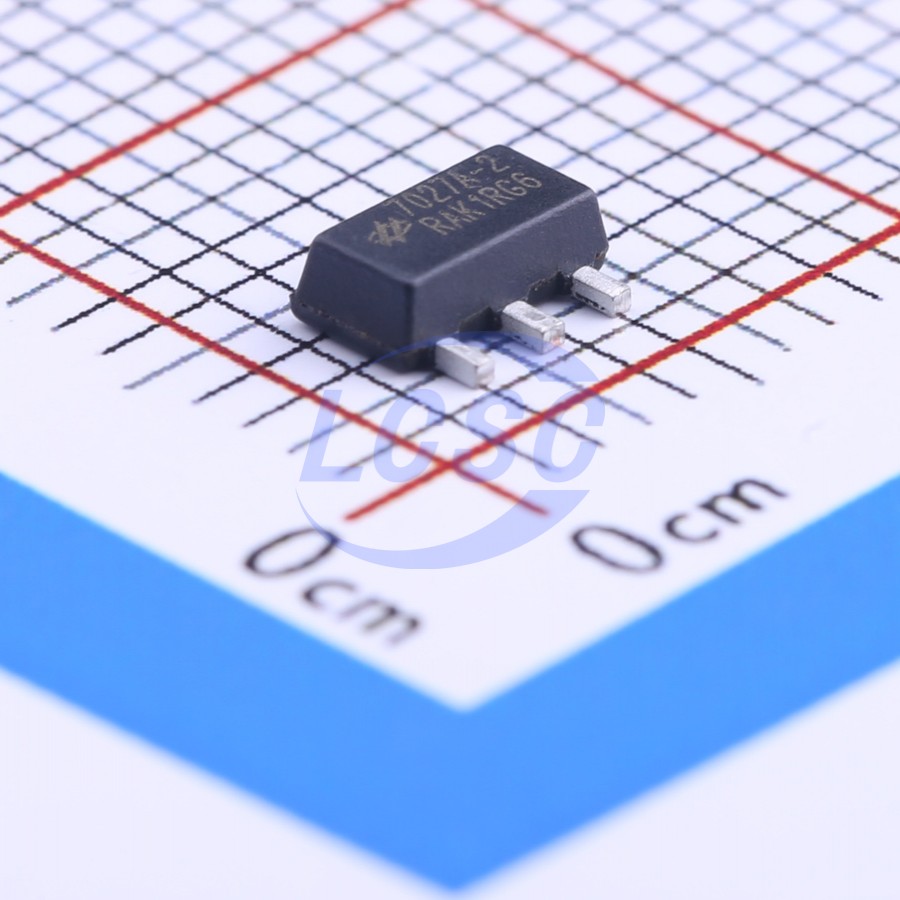

HT7027A-2
Supervisor Open Drain 1 Channel SOT-89
TinyPower Voltage Detector
- Manufacturer
- HOLTEK
- Manufacturer part #
- HT7027A-2
- Store part #
- C132720
- Package / case
- SOT-89
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C132720
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.15 | ₹100.75 |
| 50+ | ₹15.88 | ₹794.00 |
| 150+ | ₹14.06 | ₹2,109.00 |
| 1,000+ | ₹11.77 | ₹11,770.00 |
| 2,000+ | ₹10.76 | ₹21,520.00 |
| 5,000+ | ₹10.14 | ₹50,700.00 |
5 × ₹20.15
₹100.75
excl. GST
₹118.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7027A-2
₹100.75 for 5 + GST
Specifications
- Reset Timeout
- 200us
- Operating Temperature
- -40℃~+85℃@(TA)
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1.5V~30V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.7V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.197 g
Overview
The HT70xxA-2 series is a group of three-terminal low-power voltage detectors implemented in CMOS technology. The voltage detectors in this series are capable of detecting fixed voltages ranging from 2.2V to 8.2V. The voltage detector series consists of a high-precision, low-power reference voltage source, comparator, hysteresis circuit, and output driver. Fabricated using CMOS technology, ensuring low power consumption. Although primarily used as fixed voltage detectors, these ICs can be paired with external components for detection at specified threshold voltages.
Applications
- Battery detector
- Level selector
- Power failure detector
- Microcomputer reset
- Battery backup storage
- Non-volatile RAM signal storage protection
Key features
- Low power consumption
- Low temperature coefficient
- Wide input voltage range (up to 30V)
- Quiescent current: 3μA
- Output voltage accuracy: ±1%
- Built-in hysteresis circuit
- Package types: 3-pin SOT89 and 5-pin SOT23
