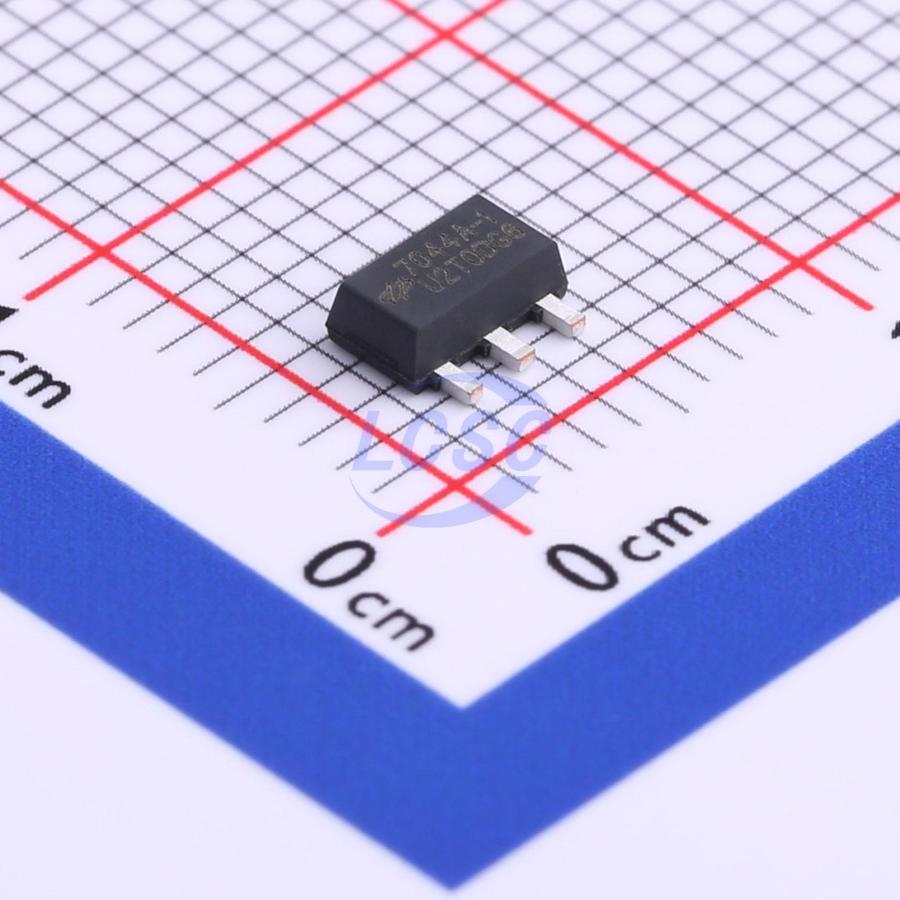

HT7044A-1

The HT70xxA-1 series is a group of three-terminal low-power voltage detectors implemented in CMOS technology. The voltage detectors in this series are capable of detecting fixed voltages ranging from 2.2V to 8.2V. The voltage detector series consists of a high-accuracy, low-power reference voltage source, comparator, hysteresis circuit, and output driver. Fabricated using CMOS technology, low power consumption is ensured. Although primarily used as fixed voltage detectors, these ICs can be paired with external components for detection at specified threshold voltages.

Applications

• Battery detector
• Level selector
• Power failure detector
• Microcomputer reset
• Battery backup storage
• Non-volatile RAM signal storage protection

Key features

• Low power consumption
• Low temperature coefficient
• High input voltage range (up to 30V)
• Quiescent current: 3μA
• Output voltage accuracy: ±3%
• Built-in hysteresis circuit
• Package types: 3-pin SOT89, 3-pin SOT23, and 5-pin SOT23
