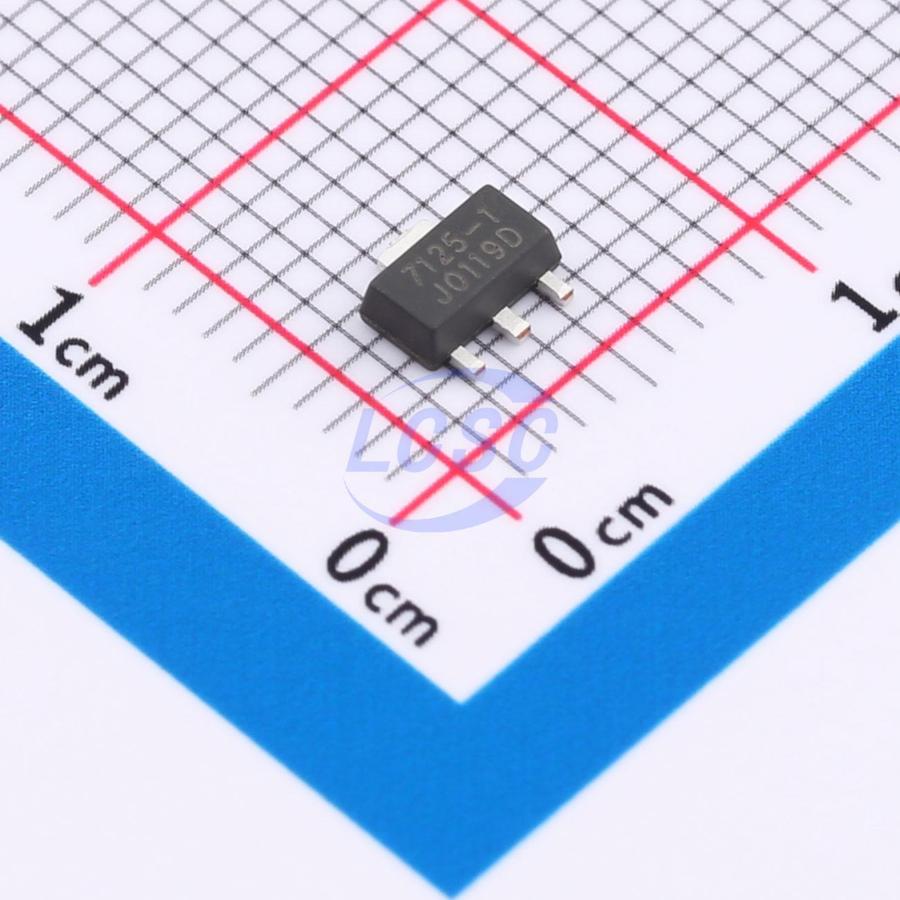

HT7125-1
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89
SOT-89ROHS CompliantActive
100mA LOW POWER LDO
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7125-1
- Store part #
- C22466231
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,230 in stock
#C22466231
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.31 | ₹63.10 |
| 100+ | ₹5.05 | ₹505.00 |
| 300+ | ₹4.43 | ₹1,329.00 |
| 1,000+ | ₹3.96 | ₹3,960.00 |
| 5,000+ | ₹3.59 | ₹17,950.00 |
| 10,000+ | ₹3.40 | ₹34,000.00 |
10 × ₹6.31
₹63.10
excl. GST
₹74.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7125-1
₹63.10 for 10 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 36V
- Output Current
- 100mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.154 g
Overview
HT71xx-1 is a low dropout linear regulator utilizing CMOS technology. The maximum output current is 100mA with a maximum allowable input voltage of 36V. Several fixed output voltages are available, ranging from 2.5V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 36V
- Typical quiescent current: 2uA
- Maximum output current: 100mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, TO92, SOT89
