TDSEMICDatasheet (PDF)

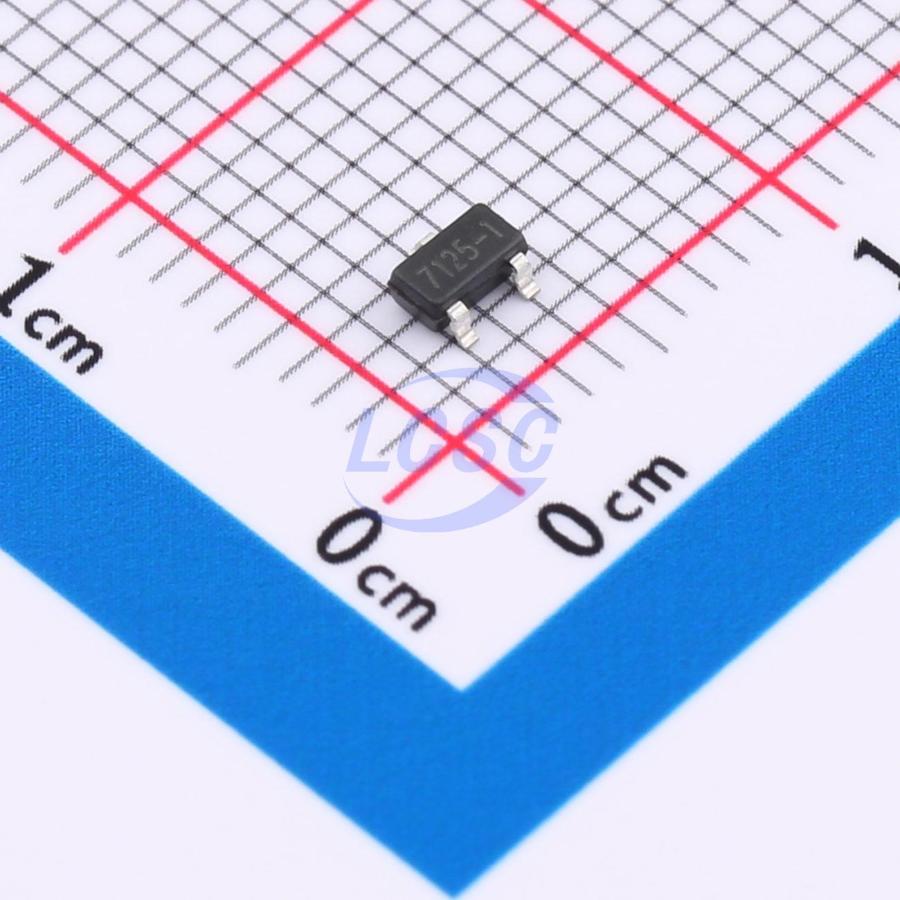

HT7125S
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3
SOT-23-3ROHS CompliantActive
IC REG LINEAR 2.5V 100mA SOT-23-3
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7125S
- Store part #
- C22466225
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,360 in stock
#C22466225
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.04 | ₹70.40 |
| 100+ | ₹5.61 | ₹561.00 |
| 300+ | ₹4.90 | ₹1,470.00 |
| 3,000+ | ₹4.35 | ₹13,050.00 |
| 6,000+ | ₹3.93 | ₹23,580.00 |
| 9,000+ | ₹3.72 | ₹33,480.00 |
10 × ₹7.04
₹70.40
excl. GST
₹83.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7125S
₹70.40 for 10 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 36V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
HT71XX-1/HT71XS is a low-dropout linear regulator utilizing CMOS technology. It delivers a maximum output current of 100mA and supports an input voltage up to 36V. The device offers multiple fixed output voltage options ranging from 2.5V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 36V
- Typical quiescent current: 2uA
- Maximum output current: 100mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, TO92, SOT89
