HOLTEKDatasheet (PDF)

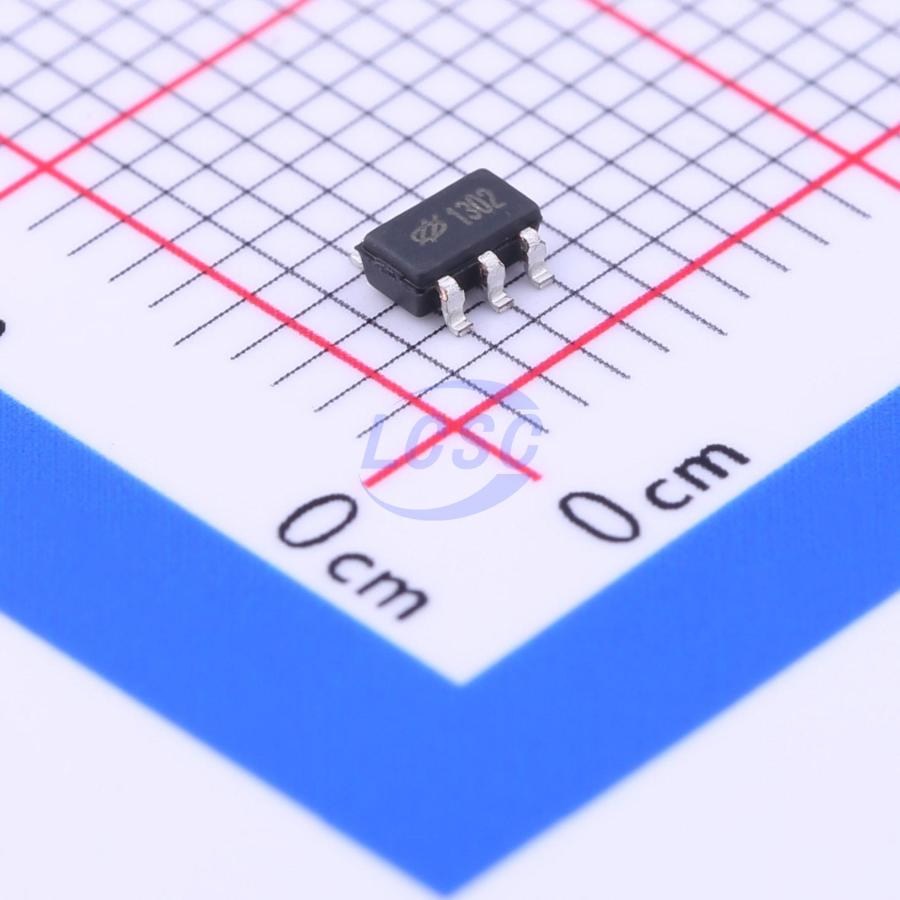

HT7130-2
Linear Voltage Regulator IC Positive Fixed 1 Output 30mA SOT-23-5
SOT-23-5RoHSActive
IC REG LINEAR 3V 30mA SOT-23-5
- Manufacturer
- HOLTEK
- Manufacturer part #
- HT7130-2
- Store part #
- C259585
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C259585
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.80 | ₹94.00 |
| 50+ | ₹15.07 | ₹753.50 |
| 150+ | ₹13.20 | ₹1,980.00 |
| 500+ | ₹11.80 | ₹5,900.00 |
| 3,000+ | ₹10.68 | ₹32,040.00 |
| 6,000+ | ₹10.12 | ₹60,720.00 |
5 × ₹18.80
₹94.00
excl. GST
₹110.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7130-2
₹94.00 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 30mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The HT71xx-2 series is a group of three-terminal low-power high-voltage regulators implemented in CMOS technology. The allowable input voltage can be as high as 30V. Several fixed output voltage options are available, ranging from 2.1V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics. Although primarily designed as fixed voltage regulators, these ICs can be combined with external components to achieve variable voltage and current outputs.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- High input voltage (up to 30V)
- Output voltage accuracy: ±1%
- Package types: 3-pin SOT89, 5-pin SOT23
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7530-2#C259647HOLTEK · SOT-23-5 | HOLTEK | SOT-23-5 | 2,970 | ₹19.37 · 2,970 in stock | View |
 | HT7530S-1#C3025149UMW · SOT-23-5 | UMW | SOT-23-5 | 370 | ₹5.93 · 370 in stock | View |
| LW6530A23E#C51953185Lewa Micro · SOT-23-5L | Lewa Micro | SOT-23-5L | 2,920 | ₹8.51 · 2,920 in stock | View | |
 | PJ54M30SE#C41367948PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 495 | ₹15.65 · 495 in stock | View |
 | SL54M30SE#C5122500Slkor · SOT-23-5 | Slkor | SOT-23-5 | 3,360 | ₹17.37 · 3,360 in stock | View |
