GUOXIN JIAPIN SEMICONDUCTORDatasheet (PDF)

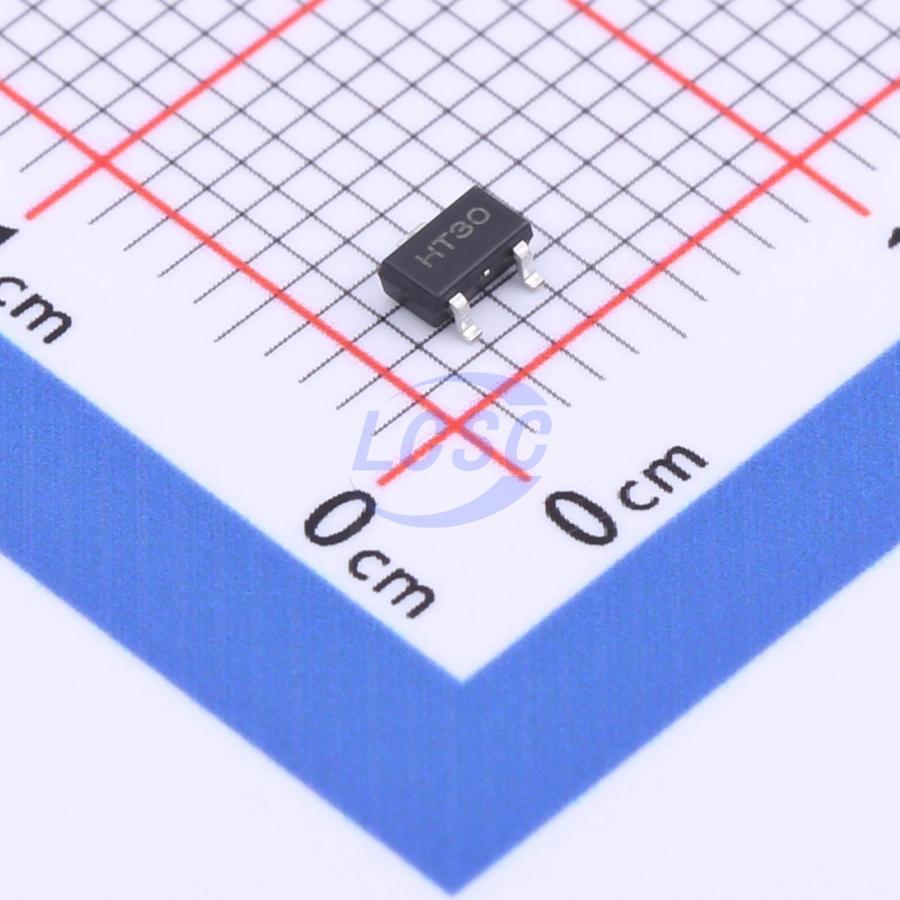

HT7130
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3L
SOT-23-3LRoHSActive
LDO Linear Voltage Regulator
- Manufacturer
- GUOXIN JIAPIN SEMICONDUCTOR
- Manufacturer part #
- HT7130
- Store part #
- C2684628
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,020 in stock
#C2684628
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.19 | ₹61.90 |
| 100+ | ₹4.93 | ₹493.00 |
| 300+ | ₹4.31 | ₹1,293.00 |
| 3,000+ | ₹3.64 | ₹10,920.00 |
| 6,000+ | ₹3.27 | ₹19,620.00 |
| 9,000+ | ₹3.07 | ₹27,630.00 |
10 × ₹6.19
₹61.90
excl. GST
₹73.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7130
₹61.90 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 18V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
The HT71XX series are low-power, high-voltage LDO regulators fabricated using CMOS technology, supporting input voltages up to 18V with output voltage range of 2.0V~5.0V. Key features include high-accuracy output voltage, ultra-low quiescent current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: ≤3μA
- Low dropout voltage: typical 0.1V
- Low temperature drift: typical 50ppm/°C
- High input voltage: up to 18V
- High-accuracy output voltage: ±3% tolerance
- Package types: TO-92, SOT89-3, SOT23-3
