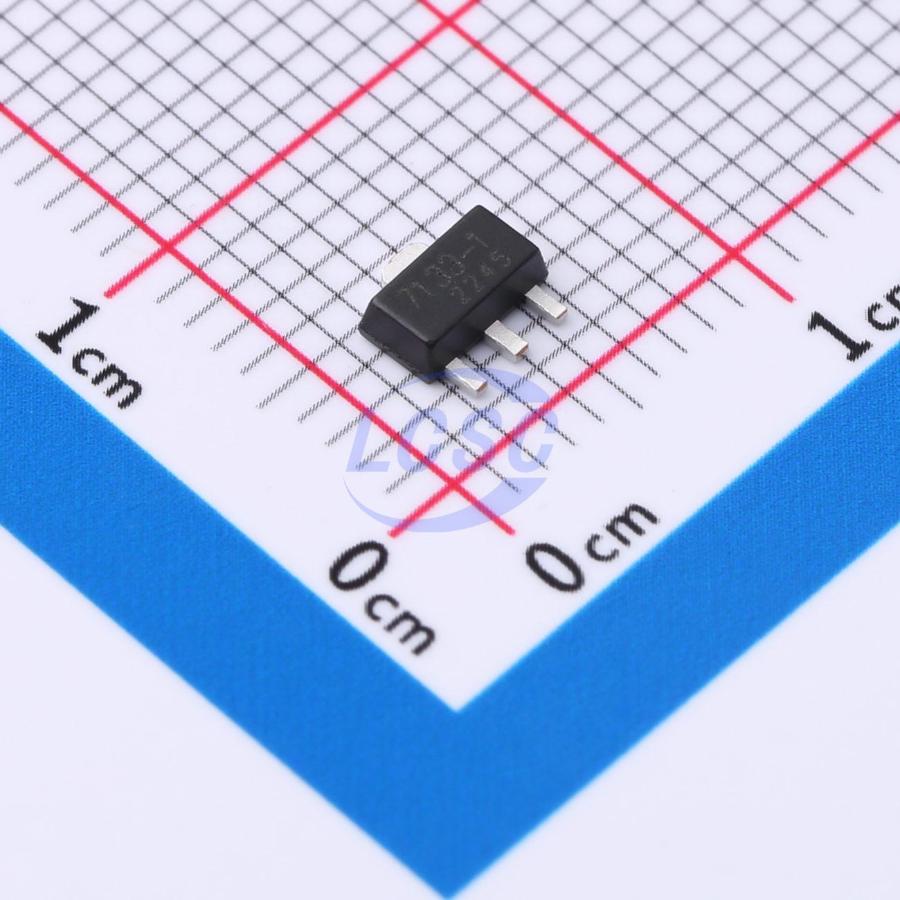

HT7133-1
3.3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89ROHS CompliantActive
100mA Low Power LDO
- Manufacturer
- TWGMC
- Manufacturer part #
- HT7133-1
- Store part #
- C5279050
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C5279050
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.03 | ₹80.30 |
| 100+ | ₹6.63 | ₹663.00 |
| 300+ | ₹5.93 | ₹1,779.00 |
| 1,000+ | ₹4.45 | ₹4,450.00 |
| 5,000+ | ₹4.02 | ₹20,100.00 |
| 10,000+ | ₹3.82 | ₹38,200.00 |
10 × ₹8.03
₹80.30
excl. GST
₹94.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7133-1
₹80.30 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 28V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.14 g
Overview
The HT71xx-1 series is a set of three-terminal high current low voltage regulator implemented in CMOS technology. They can deliver 100mA output current and allow an input voltage as high as 30V. They are available with several fixed output voltages ranging from 2.1V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
Applications
- Battery-powered equipment
- Communication equipment
- Audio/Video equipment
Key features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- High input voltage (up to 30V)
- High output current: 100mA
- Output voltage accuracy: tolerance ±3%
- SOT-89 and SOT-23 packages
