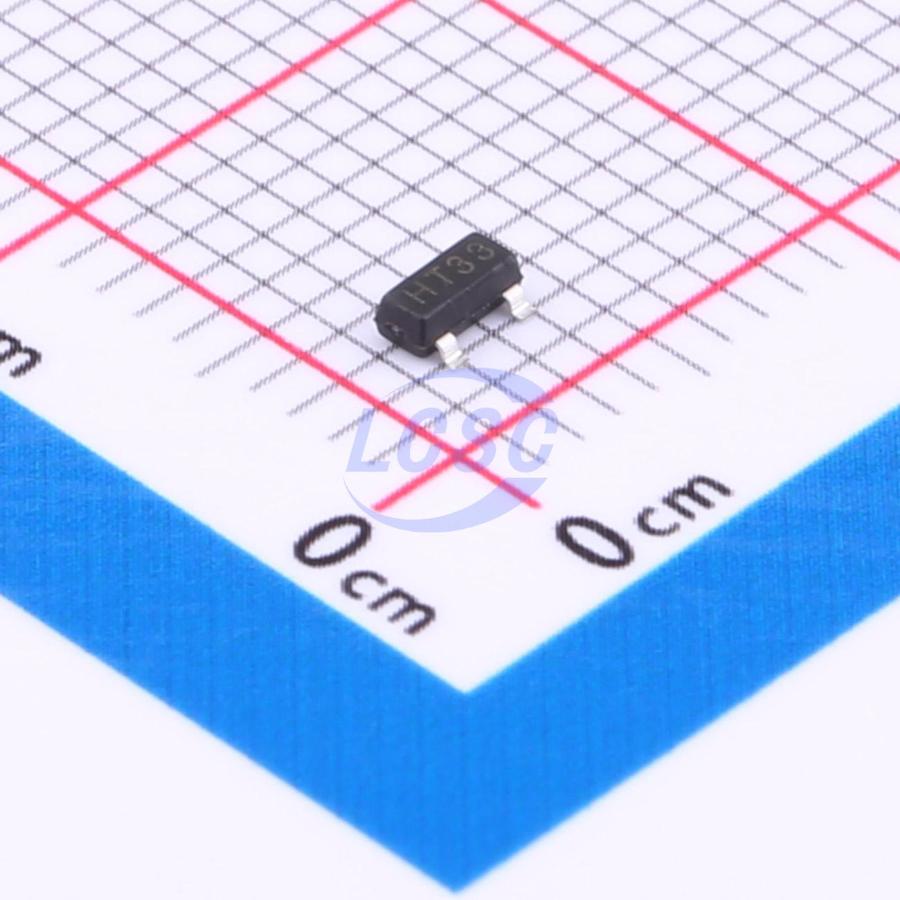

HT7133-1
Linear Voltage Regulator IC Positive Fixed 100mA SOT-23
SOT-23RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- HT7133-1
- Store part #
- C6454476
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,710 in stock
#C6454476
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.72 | ₹67.20 |
| 100+ | ₹5.32 | ₹532.00 |
| 300+ | ₹4.62 | ₹1,386.00 |
| 3,000+ | ₹4.09 | ₹12,270.00 |
| 6,000+ | ₹3.66 | ₹21,960.00 |
| 9,000+ | ₹3.45 | ₹31,050.00 |
10 × ₹6.72
₹67.20
excl. GST
₹79.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7133-1
₹67.20 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 24V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The HT71XX is a low-dropout linear regulator using CMOS technology. It can withstand a maximum voltage of 30V and offers several fixed output voltage values with an output range of 2.8V to 9.0V. It has low quiescent power consumption and is widely used for power supply in various audio, video, and communication devices.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Low temperature drift coefficient
- Maximum operating voltage up to 24V
- Quiescent current: 1.5μA
- Output voltage accuracy: ±2%
- High output current: 100mA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MHT7133S#C42403111MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 580 | ₹4.72 · 580 in stock | View |
 | TLV76033DBZR-MS#C45360155MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 3,025 | ₹11.87 · 3,025 in stock | View |
 | MHT7533S#C42403117MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 2,600 | ₹4.64 · 2,600 in stock | View |
 | LM3480IM3X-3.3/NOPB-MS#C45360157MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 2,750 | ₹17.61 · 2,750 in stock | View |
 | HT7333-1-MS#C7434222MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 2,940 | ₹10.60 · 2,940 in stock | View |
