GREENMICRODatasheet (PDF)

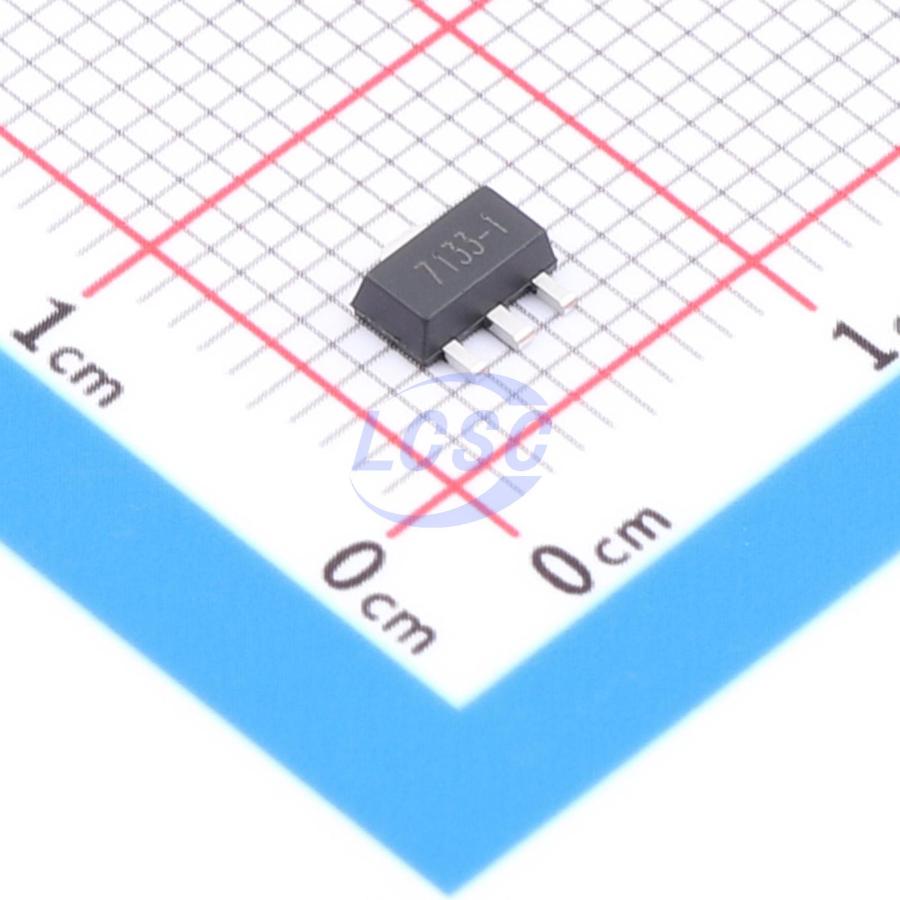

HT7133-1FR
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- HT7133-1FR
- Store part #
- C51889841
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C51889841
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.47 | ₹49.40 |
| 200+ | ₹2.41 | ₹482.00 |
| 1,000+ | ₹2.38 | ₹2,380.00 |
| 2,000+ | ₹2.34 | ₹4,680.00 |
20 × ₹2.47
₹49.40
excl. GST
₹58.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7133-1FR
₹49.40 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 4uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 36V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.188 g
Overview
The HT71XX series is a low-power, high-voltage LDO regulator implemented in CMOS process, capable of delivering a maximum output current of 150mA. The device features an ultra-low quiescent current of 4μA while maintaining transient response to fast load transients. It also integrates thermal protection, short-circuit protection, and current limiting protection, with a maximum input voltage of 36V. The fixed output voltage range is 1.5V to 9V, supporting customization with high accuracy.
Key features
- Low quiescent current, typical 4uA
- Maximum output current 150mA
- Maximum input voltage 36V
- Low dropout, 600mV at Iout=100mA
- Low temperature coefficient, <±100 ppm/℃
- Output voltage options: 1.5V, 1.8V, 2.7V, 3.0V, 3.3V, 3.6V, 4.4V, 5.0V, 9.0V
- Output voltage accuracy ±2%
- Strong voltage-follower drive capability with low power consumption under undervoltage input conditions
- Short-circuit protection, current limiting protection, and over-temperature protection
