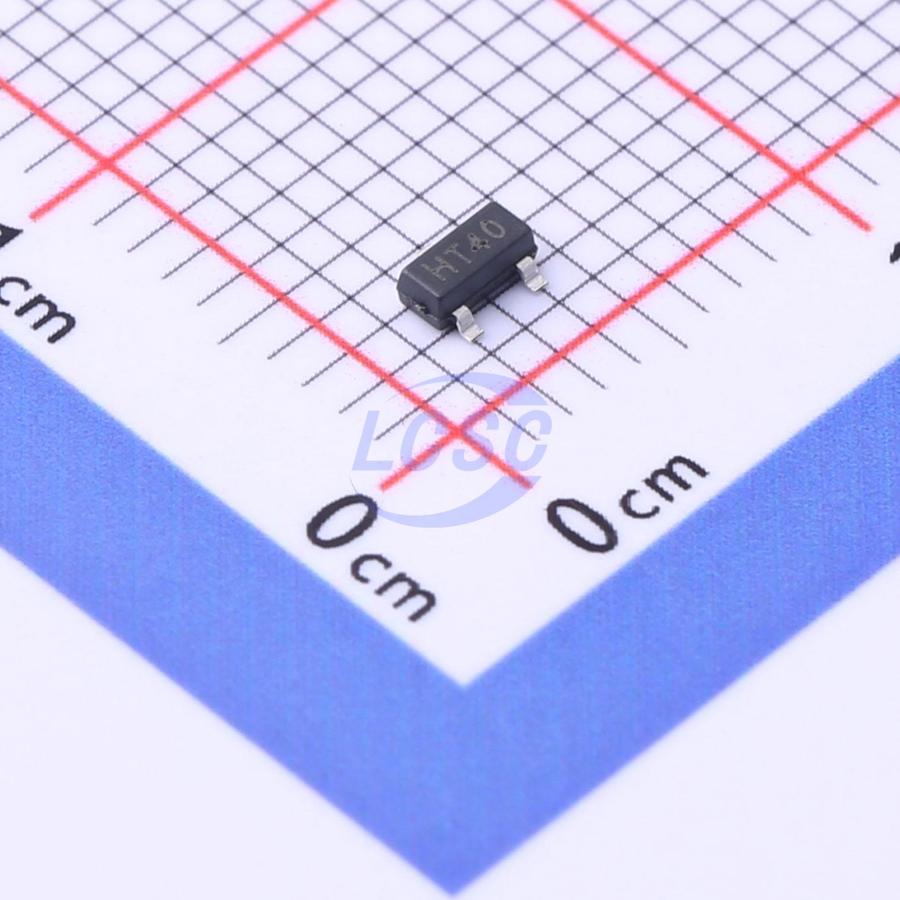

HT7140
Linear Voltage Regulator IC Positive Fixed 1 Output 60mA SOT-23-3
SOT-23-3ROHS CompliantActive
IC REG LINEAR 4V 60mA SOT-23-3
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HT7140
- Store part #
- C2984878
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C2984878
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.86 | ₹58.60 |
| 100+ | ₹4.71 | ₹471.00 |
| 300+ | ₹4.14 | ₹1,242.00 |
| 3,000+ | ₹3.33 | ₹9,990.00 |
| 6,000+ | ₹2.99 | ₹17,940.00 |
| 9,000+ | ₹2.82 | ₹25,380.00 |
10 × ₹5.86
₹58.60
excl. GST
₹69.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7140
₹58.60 for 10 + GST
Specifications
- Output Voltage
- 4V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 60mA
- Operating Voltage
- 18V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
HT71XX series are low-power, high-voltage regulators fabricated using CMOS process, with a maximum input voltage of 18V and an output voltage range of 2–5V. Key features include high-accuracy output voltage, ultra-low supply current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: 3μA
- Low dropout voltage: typical 0.1V
- Low temperature coefficient: typical 50 ppm/℃
- High input voltage: up to 18V
- High-accuracy output voltage: ±3% tolerance
- Package types: TO-92, SOT89-3, SOT23-3
