QNHCHIPDatasheet (PDF)

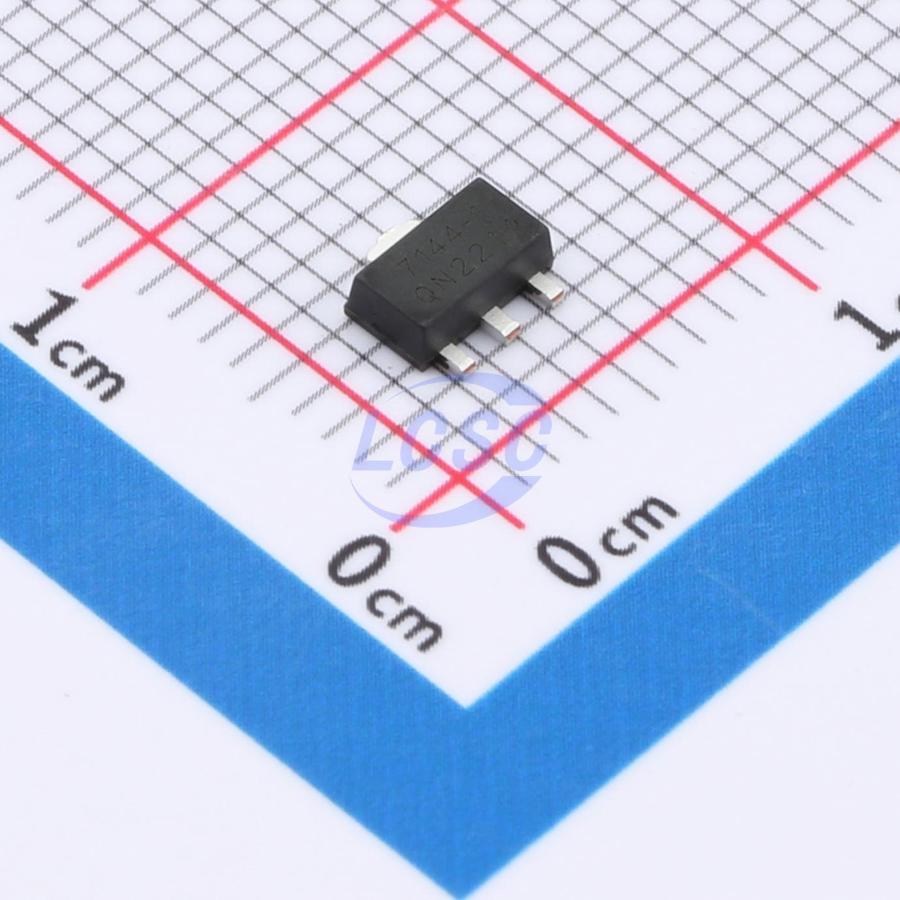

HT7144
Linear Voltage Regulator IC Fixed 50mA SOT-89
SOT-89RoHSActive
Low Dropout (LDO) Linear Regulator
- Manufacturer
- QNHCHIP
- Manufacturer part #
- HT7144
- Store part #
- C47148917
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C47148917
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.94 | ₹89.40 |
| 100+ | ₹7.08 | ₹708.00 |
| 300+ | ₹6.14 | ₹1,842.00 |
| 1,000+ | ₹5.44 | ₹5,440.00 |
| 5,000+ | ₹4.87 | ₹24,350.00 |
| 10,000+ | ₹4.59 | ₹45,900.00 |
10 × ₹8.94
₹89.40
excl. GST
₹105.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7144
₹89.40 for 10 + GST
Specifications
- Output Voltage
- 4.4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 50mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.168 g
Overview
HT71XX is a low dropout linear regulator fabricated using CMOS technology. The device supports up to 24V input voltage, offers multiple fixed output voltage options ranging from 2.5V to 5.0V, and features low quiescent current consumption, making it widely used in power supply applications for audio, video, and communications equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
- Wireless communication equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Low temperature drift coefficient
- 24V withstand voltage
- Quiescent current 1.5μA
- Output voltage accuracy: ±2%
- High output current 50mA
