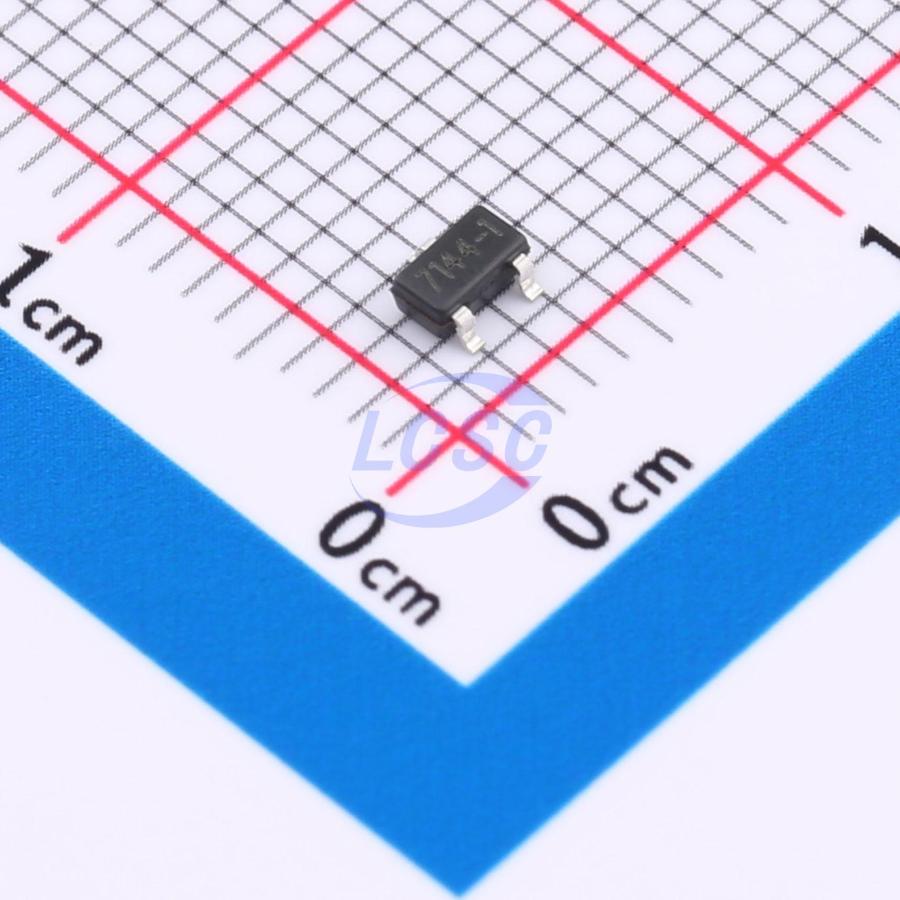

HT7144S
4.4V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-3ROHS CompliantActive
100mA LOW POWER LDO
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7144S
- Store part #
- C22466229
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,490 in stock
#C22466229
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.25 | ₹52.50 |
| 100+ | ₹4.21 | ₹421.00 |
| 300+ | ₹3.69 | ₹1,107.00 |
| 3,000+ | ₹3.29 | ₹9,870.00 |
| 6,000+ | ₹2.99 | ₹17,940.00 |
| 9,000+ | ₹2.83 | ₹25,470.00 |
10 × ₹5.25
₹52.50
excl. GST
₹61.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7144S
₹52.50 for 10 + GST
Specifications
- Output Voltage
- 4.4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 36V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
HT71XXS is a low dropout linear regulator using CMOS technology. Maximum output current is 100mA with a maximum allowable input voltage of 36V. Several fixed output voltages are available, ranging from 2.5V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 36V
- Typical quiescent current: 2uA
- Maximum output current: 100mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, TO92, SOT89
