HOLTEKDatasheet (PDF)

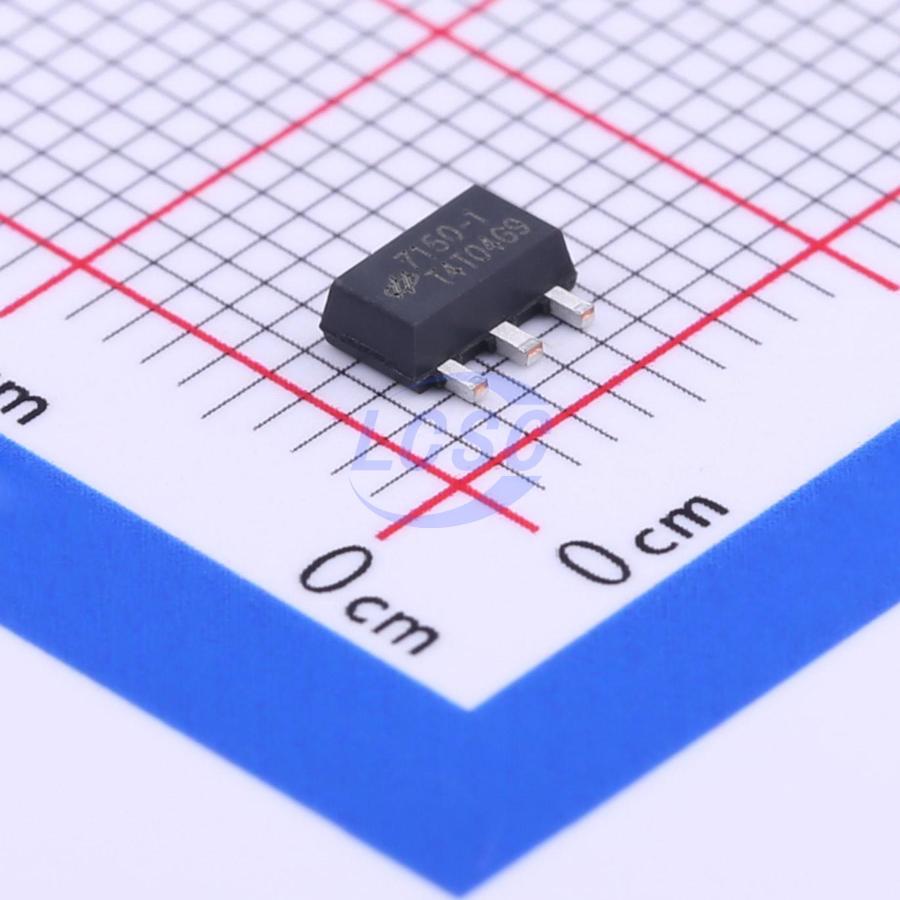

HT7150-1
Linear Voltage Regulator IC Positive Fixed 1 Output 30mA SOT-89-3
SOT-89-3RoHSActive
30 mA low-power LDO
- Manufacturer
- HOLTEK
- Manufacturer part #
- HT7150-1
- Store part #
- C19966
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,370 in stock
#C19966
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.26 | ₹81.30 |
| 50+ | ₹13.31 | ₹665.50 |
| 150+ | ₹11.84 | ₹1,776.00 |
| 1,000+ | ₹10.23 | ₹10,230.00 |
| 2,000+ | ₹9.35 | ₹18,700.00 |
| 5,000+ | ₹8.91 | ₹44,550.00 |
5 × ₹16.26
₹81.30
excl. GST
₹95.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7150-1
₹81.30 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 30mA
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.197 g
Overview
The HT71xx-1 series is a group of three-terminal low-power high-voltage regulators implemented in CMOS technology. The allowable input voltage can be as high as 30V. Several fixed output voltages are available, ranging from 2.1V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics. Although primarily designed as fixed voltage regulators, these ICs can be combined with external components to achieve variable voltage and current.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- High input voltage (up to 30V)
- Output voltage accuracy: ±3%
- Package types: 3-pin SOT89, 5-pin SOT23
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7150-2#C259223HOLTEK · SOT-89-3 | HOLTEK | SOT-89-3 | 930 | ₹14.72 · 930 in stock | View |
 | HT7150-3#C259232HOLTEK · SOT-89-3 | HOLTEK | SOT-89-3 | 1,020 | ₹15.74 · 1,020 in stock | View |
 | JTD7150#C49308252JTD · SOT-89-3L | JTD | SOT-89-3L | 740 | ₹4.32 · 740 in stock | View |
 | HT7150-1#C5362146CBI · SOT-89 | CBI | SOT-89 | 820 | ₹6.22 · 820 in stock | View |
 | QN7550-1PG#C42444791QNHCHIP · SOT-89 | QNHCHIP | SOT-89 | 440 | ₹4.65 · 440 in stock | View |
