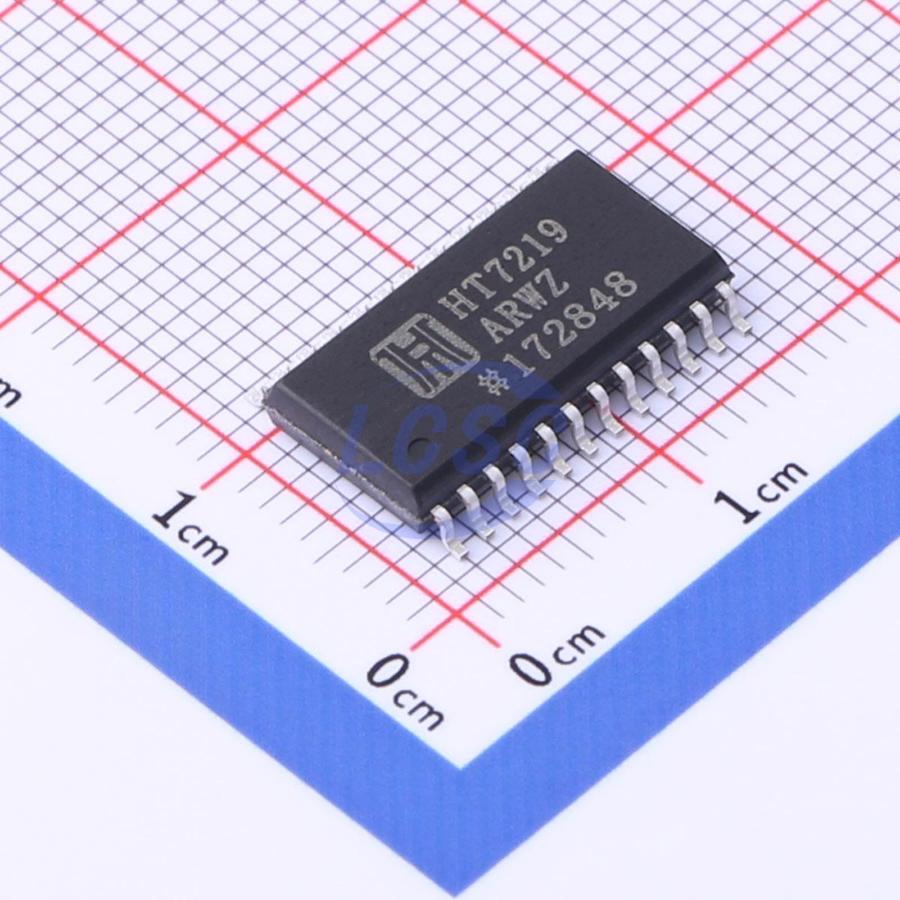

HT7219ARWZ

HT7219A/HT7221A are compact, serially interfaced common-cathode display drivers that interface microprocessors to up to 8-digit seven-segment numeric LED displays, bar-graph displays, or 64 individual LEDs. The devices include an on-chip BCD code-B decoder, multiplex scan circuitry, segment and digit drivers, and an 8×8 static RAM to store each digit. A single external resistor sets the segment current for all LEDs. The HT7221A is compatible with SPI, QSPI, and Microwire, and features slew-rate-limited segment drivers to reduce EMI. A convenient 3-wire serial interface connects to all common microprocessors. Individual digits can be addressed and updated without rewriting the entire display. The HT7219A/HT7221A also allow the user to select either code-B decoding or no-decode on a per-digit basis. The devices include a 150μA low-power shutdown mode, analog and digital brightness control, a scan-limit register that allows the user to display 1 to 8 digits, and a test mode that forces all LEDs on.

Applications

• Bar graph displays
• 7-segment displays
• Industrial controllers
• Panel meters
• LED matrix displays

Key features

• 10MHz serial interface
• Individual LED segment control
• Decode/no-decode digit selection
• 150μA low-power shutdown (data retention)
• Digital and analog brightness control
• Display blanking on power-up
• Drives common-cathode LED displays
• Slew-rate-limited segment drivers for reduced EMI (HT7221A)
• SPI, QSPI, Microwire serial interface (HT7221A)
• 24-pin DIP and SO packages
