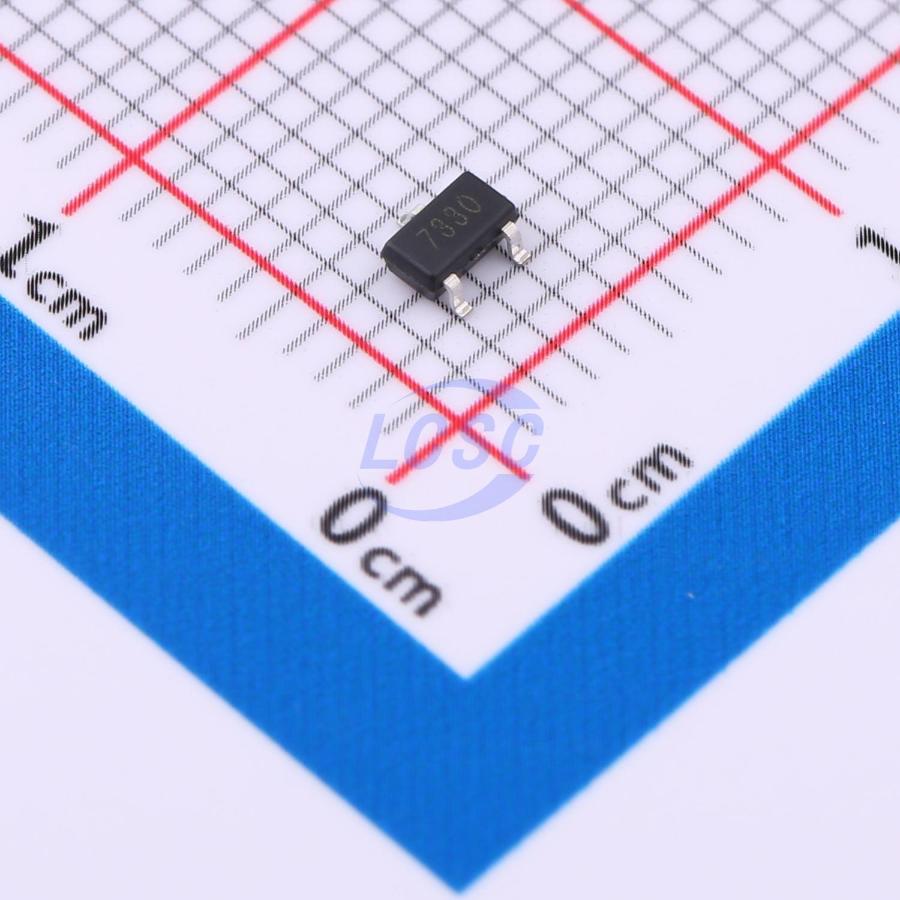

HT7330-1-MS
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23
SOT-23RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- HT7330-1-MS
- Store part #
- C7434221
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,140 in stock
#C7434221
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.93 | ₹89.30 |
| 100+ | ₹7.05 | ₹705.00 |
| 300+ | ₹6.13 | ₹1,839.00 |
| 3,000+ | ₹5.42 | ₹16,260.00 |
| 6,000+ | ₹4.86 | ₹29,160.00 |
| 9,000+ | ₹4.58 | ₹41,220.00 |
10 × ₹8.93
₹89.30
excl. GST
₹105.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7330-1-MS
₹89.30 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -35℃~+80℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 24V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
HT73XX-1-MS is a low dropout linear regulator using CMOS technology. Output current is 300mA with a maximum allowable input voltage of 24V. Several fixed output voltages are available, ranging from 3.0V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low dropout
- Low temperature coefficient
- Operating voltage up to 24V
- Quiescent current 1.5μA
- Output voltage accuracy: ±2%
- Output current: 300mA
- Package types: SOT23-3, SOT89
