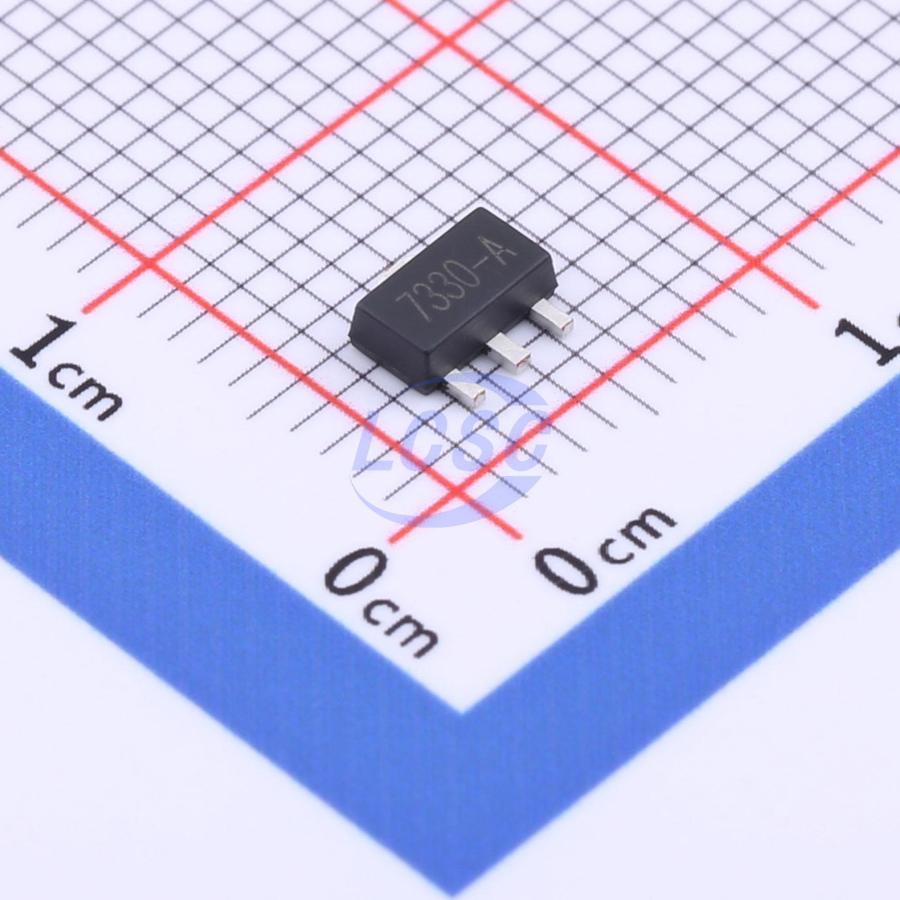

HT7330-A
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-89-3
SOT-89-3RoHSActive
IC REG LINEAR 3V 250mA SOT-89-3
- Manufacturer
- GUOXIN JIAPIN SEMICONDUCTOR
- Manufacturer part #
- HT7330-A
- Store part #
- C2685032
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C2685032
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.07 | ₹55.35 |
| 50+ | ₹8.88 | ₹444.00 |
| 150+ | ₹7.78 | ₹1,167.00 |
| 1,000+ | ₹6.35 | ₹6,350.00 |
| 2,000+ | ₹5.70 | ₹11,400.00 |
| 5,000+ | ₹5.37 | ₹26,850.00 |
5 × ₹11.07
₹55.35
excl. GST
₹65.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7330-A
₹55.35 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 12V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.159 g
Overview
The HT73XX-A series is a positive-voltage LDO regulator developed using CMOS technology, featuring high output voltage accuracy and ultra-low quiescent current. Thanks to the built-in low on-resistance transistor, the dropout voltage is minimal, while the device also offers high input voltage tolerance, with a maximum operating voltage of 12V, making it suitable for applications requiring higher voltage ratings.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for communication equipment
- Regulated power supply for home appliances and toys
- Regulated power supply for mobile phones
- Regulated power supply for portable medical instruments
Key features
- High output voltage accuracy: ±3%
- Ultra-low quiescent current: typical 3μA
- Low output voltage temperature coefficient: typical 50ppm/℃
- High input voltage tolerance: regulated output up to 12V input
- Package types: TO-92, SOT89-3, SOT23-3
