GREENMICRODatasheet (PDF)

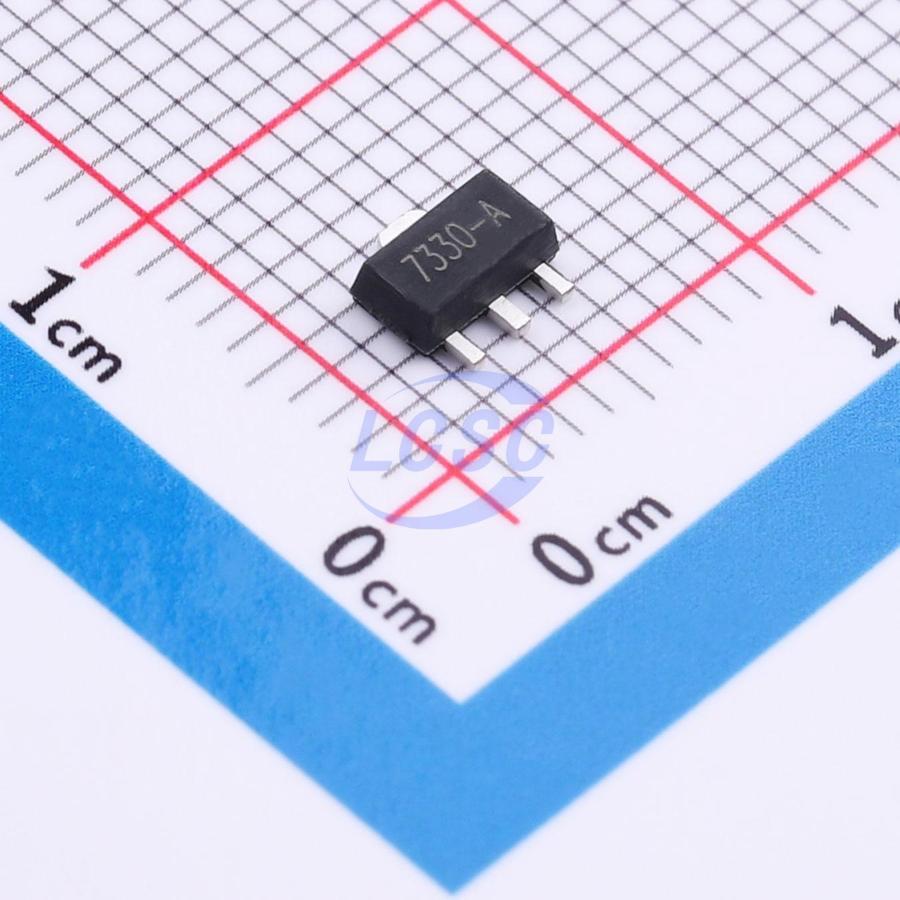

HT7330-AFR
3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- HT7330-AFR
- Store part #
- C51889734
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,090 in stock
#C51889734
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.45 | ₹84.50 |
| 100+ | ₹6.68 | ₹668.00 |
| 300+ | ₹5.78 | ₹1,734.00 |
| 1,000+ | ₹5.12 | ₹5,120.00 |
| 5,000+ | ₹4.59 | ₹22,950.00 |
| 10,000+ | ₹4.33 | ₹43,300.00 |
10 × ₹8.45
₹84.50
excl. GST
₹99.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7330-AFR
₹84.50 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 12V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.147 g
Overview
The HT73XX series is a positive-voltage LDO regulator developed with CMOS technology, featuring high-precision output voltage and ultra-low quiescent current. The built-in low on-resistance transistor enables low dropout voltage, while supporting high input voltage tolerance with a maximum operating voltage of 12V, making it suitable for applications requiring higher voltage ratings.
Applications
- Battery-powered devices
- Communication equipment
- Home appliances & toys
- Mobile phones
- Portable medical instruments
Key features
- High output voltage accuracy: ±3% accuracy
- Ultra-low quiescent current: 3uA typical
- Low output voltage temperature coefficient: 50ppm/℃ typical
- High input voltage tolerance: regulated output up to 12V input
- Package types: TO-92, SOT89-3, SOT23
