TDSEMICDatasheet (PDF)

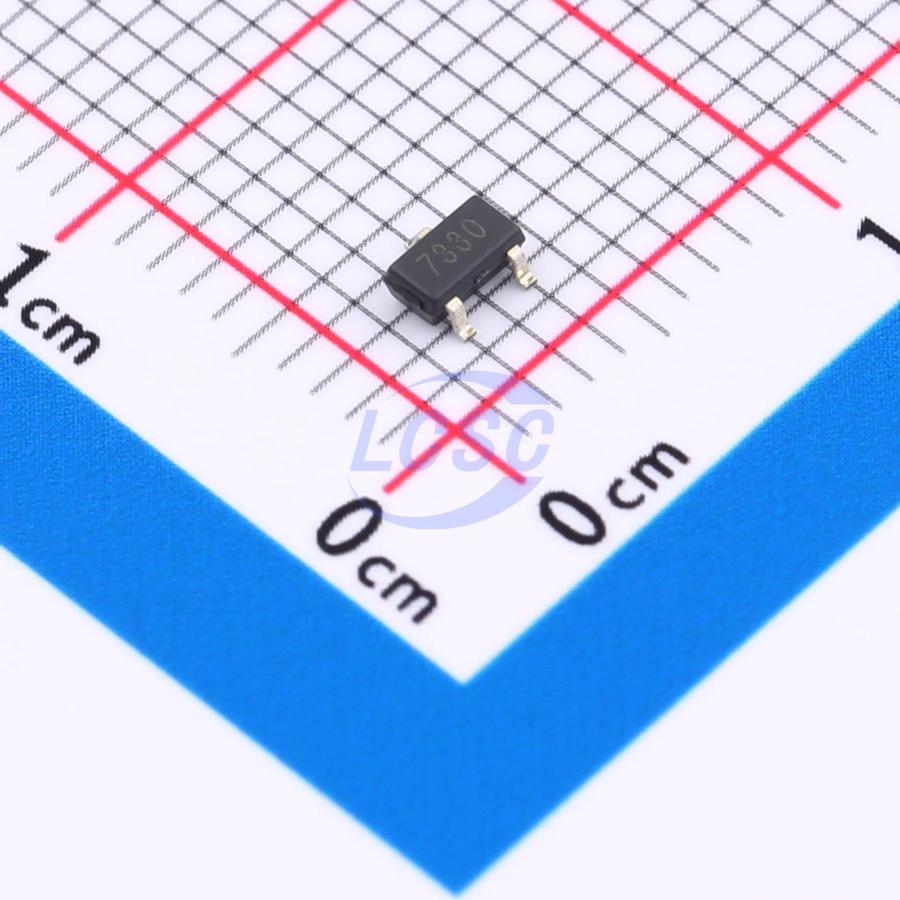

HT7330S
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-3
SOT-23-3ROHS CompliantActive
250mA LOW POWER LDO
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7330S
- Store part #
- C22466237
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,320 in stock
#C22466237
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.54 | ₹75.40 |
| 100+ | ₹5.98 | ₹598.00 |
| 300+ | ₹5.20 | ₹1,560.00 |
| 3,000+ | ₹4.62 | ₹13,860.00 |
| 6,000+ | ₹4.14 | ₹24,840.00 |
| 9,000+ | ₹3.92 | ₹35,280.00 |
10 × ₹7.54
₹75.40
excl. GST
₹88.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7330S
₹75.40 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -35℃~+80℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 250mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
HT73XX-S is a low dropout linear regulator utilizing CMOS technology. It provides an output current of 250mA and supports a maximum input voltage of 24V. Several fixed output voltage options are available, ranging from 3.0V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 24V
- Typical quiescent current: 1.5μA
- Output current: 250mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, TO92, SOT89
