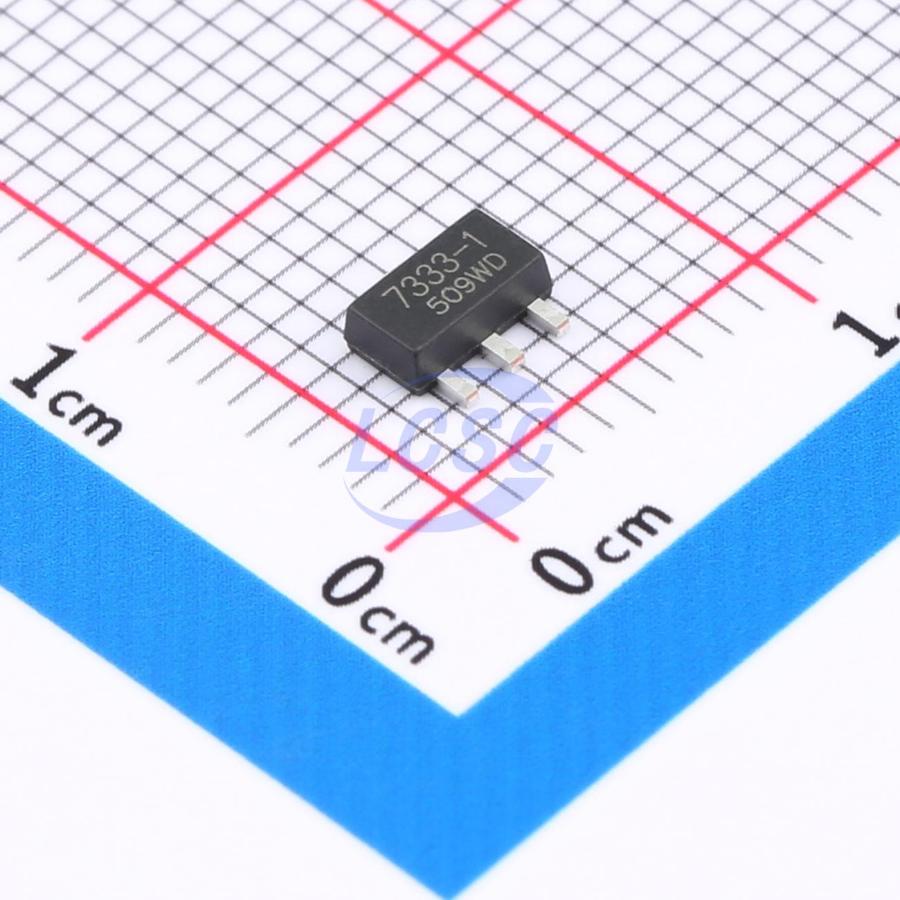

HT7333-1-MS
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-89
SOT-89RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- HT7333-1-MS
- Store part #
- C7434186
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31,870 in stock
#C7434186
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.14 | ₹81.40 |
| 100+ | ₹6.58 | ₹658.00 |
| 300+ | ₹5.79 | ₹1,737.00 |
| 1,000+ | ₹4.64 | ₹4,640.00 |
| 5,000+ | ₹4.17 | ₹20,850.00 |
| 10,000+ | ₹3.93 | ₹39,300.00 |
10 × ₹8.14
₹81.40
excl. GST
₹96.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7333-1-MS
₹81.40 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -35℃~+80℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 24V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.14 g
Overview
HT73XX-1-MS is a low dropout linear regulator using CMOS technology. Output current is 300mA with a maximum allowable input voltage of 24V. Several fixed output voltages are available, ranging from 3.0V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low dropout
- Low temperature coefficient
- Operating voltage up to 24V
- Quiescent current 1.5μA
- Output voltage accuracy: ±2%
- Output current: 300mA
- Package types: SOT23-3, SOT89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7333-3-MS#C30197514MSKSEMI · SOT-89-3 | MSKSEMI | SOT-89-3 | 560 | ₹24.65 · 560 in stock | View |
 | HT7333-2-MS#C30197517MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | 745 | ₹24.65 · 745 in stock | View |
