hengjiaxingDatasheet (PDF)

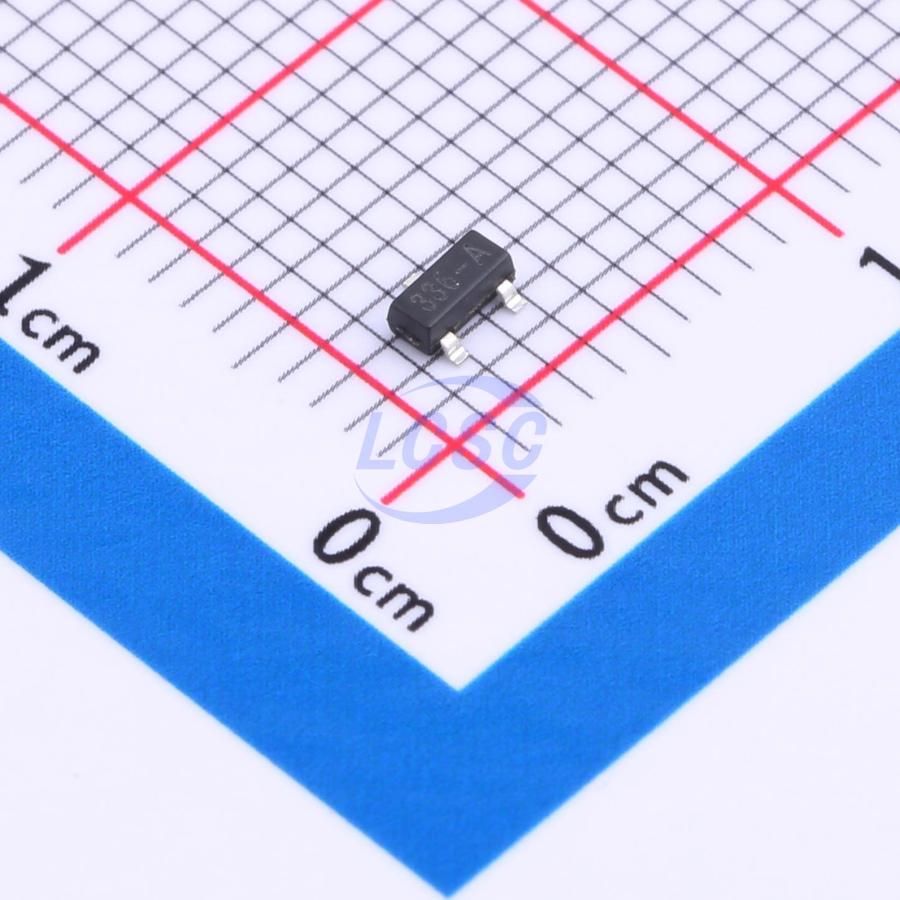

HT7336
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-3
SOT-23-3ROHS CompliantActive
IC REG LINEAR 3.6V 250mA SOT-23-3
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HT7336
- Store part #
- C2984865
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,370 in stock
#C2984865
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.02 | ₹90.20 |
| 100+ | ₹7.17 | ₹717.00 |
| 300+ | ₹6.24 | ₹1,872.00 |
| 3,000+ | ₹5.54 | ₹16,620.00 |
| 6,000+ | ₹4.99 | ₹29,940.00 |
| 9,000+ | ₹4.71 | ₹42,390.00 |
10 × ₹9.02
₹90.20
excl. GST
₹106.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7336
₹90.20 for 10 + GST
Specifications
- Output Voltage
- 3.6V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 12V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The HX73XX series is a positive-voltage LDO regulator developed using CMOS technology, featuring high output voltage accuracy and ultra-low quiescent current. Thanks to the built-in low on-resistance transistor, the dropout voltage is extremely low, while also offering high input voltage tolerance — with a maximum operating voltage of 12V — making it well-suited for applications requiring higher voltage ratings.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for communication equipment
- Regulated power supply for home appliances and toys
- Regulated power supply for mobile phones
- Regulated power supply for portable medical instruments
Key features
- High output voltage accuracy: ±3% precision
- Ultra-low quiescent current: 3μA typical
- Low output voltage temperature drift: 50 ppm/°C typical
- High input voltage tolerance: regulated output up to 12V input
- Package types: TO-92, SOT89-3, SOT23-3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HX6306P362MR#C296210hengjiaxing · SOT-23 | hengjiaxing | SOT-23 | 140 | ₹5.13 · 140 in stock | View |
