QNHCHIPDatasheet (PDF)

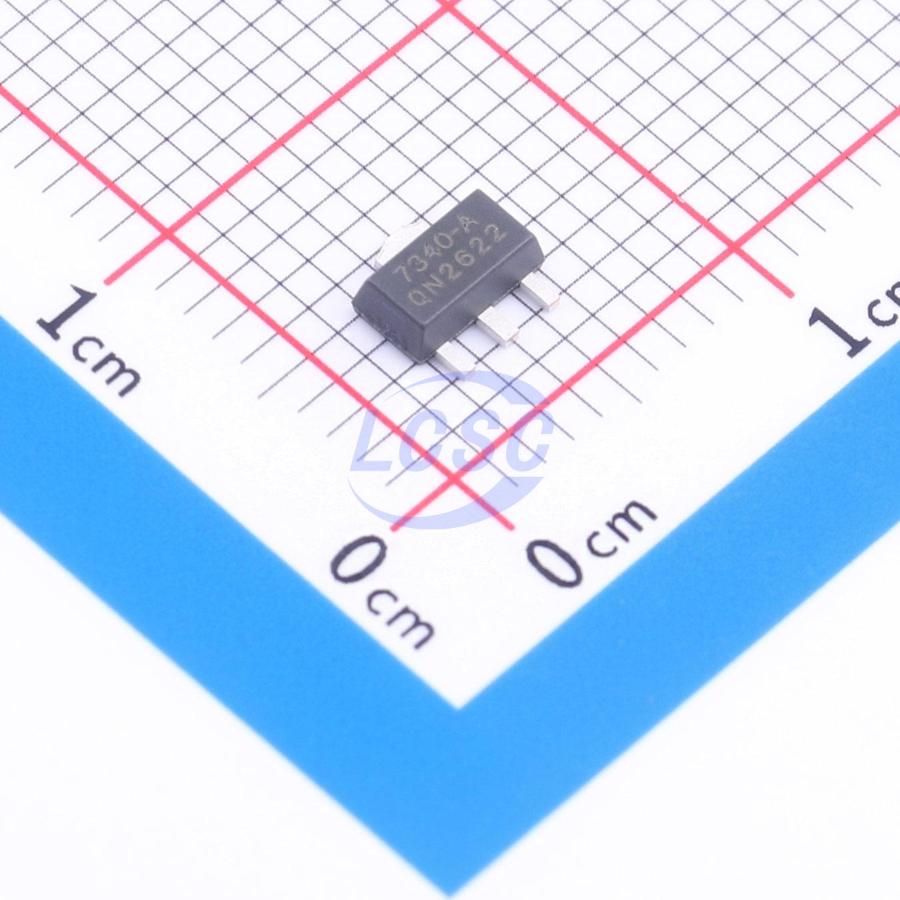

HT7340
4V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
- Manufacturer
- QNHCHIP
- Manufacturer part #
- HT7340
- Store part #
- C47089611
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
975 in stock
#C47089611
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.67 | ₹63.35 |
| 50+ | ₹10.07 | ₹503.50 |
| 150+ | ₹8.77 | ₹1,315.50 |
| 1,000+ | ₹7.79 | ₹7,790.00 |
| 2,000+ | ₹7.01 | ₹14,020.00 |
| 5,000+ | ₹6.62 | ₹33,100.00 |
5 × ₹12.67
₹63.35
excl. GST
₹74.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7340
₹63.35 for 5 + GST
Specifications
- Output Voltage
- 4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 250mA
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.159 g
Overview
The HT73XX series is a CMOS step-down voltage regulator featuring high ripple rejection, low power consumption, and low dropout characteristics, with integrated overcurrent and short-circuit protection. The device offers an ultra-low typical quiescent current of 3.0μA, capable of delivering up to 250mA output current under minimal input-to-output voltage differential while maintaining good voltage regulation. The maximum allowable input voltage is 18V.
Applications
- Cameras and camcorders
- Microprocessor voltage regulators
- LAN card voltage regulators
- Wireless communication devices
- Audio and video equipment
Key features
- Ultra-low typical quiescent current: 3.0μA
- High output voltage accuracy: ±1% (for 2.8V, 3.3V, 5.0V output voltages); ±2% (for other output voltage values)
- Maximum operating voltage: 18V
- High current capability: output current up to 250mA at 3.3V output voltage
- Ultra-low dropout voltage: 80mV at 40mA output current and 3.3V output voltage
- Low temperature coefficient
