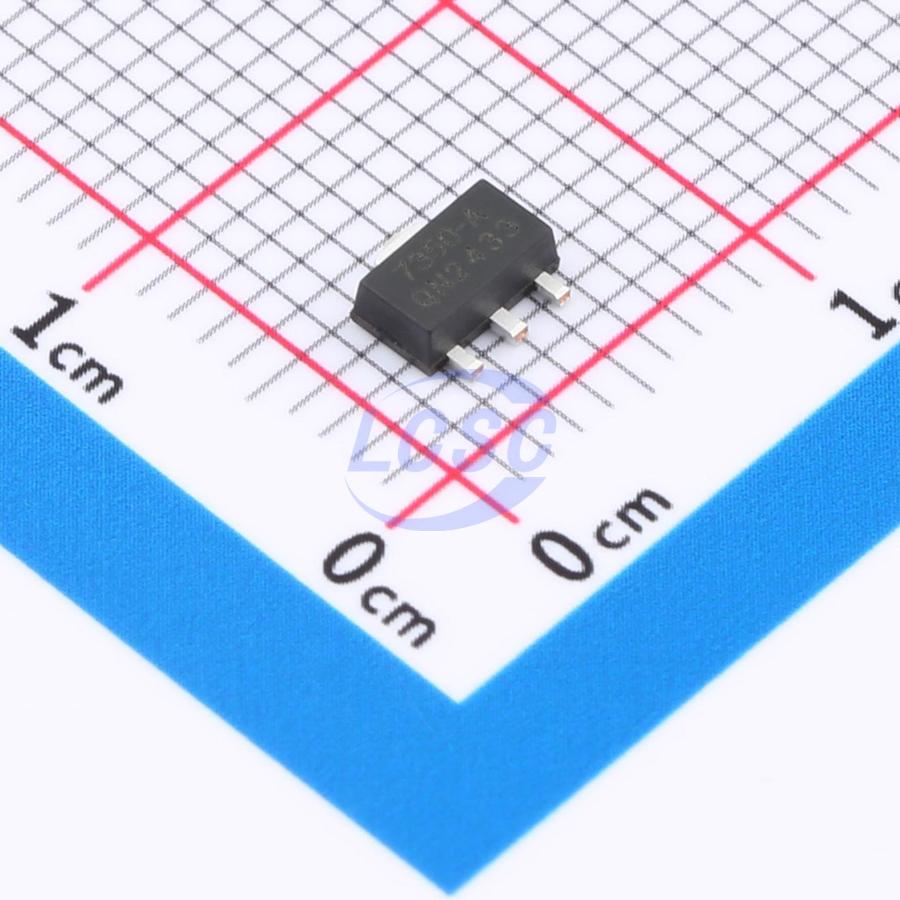

HT7350
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-89
SOT-89RoHSActive
Low Dropout (LDO) Linear Regulator
- Manufacturer
- QNHCHIP
- Manufacturer part #
- HT7350
- Store part #
- C47089604
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,210 in stock
#C47089604
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.59 | ₹85.90 |
| 100+ | ₹6.81 | ₹681.00 |
| 300+ | ₹5.94 | ₹1,782.00 |
| 1,000+ | ₹5.28 | ₹5,280.00 |
| 5,000+ | ₹4.75 | ₹23,750.00 |
| 10,000+ | ₹4.48 | ₹44,800.00 |
10 × ₹8.59
₹85.90
excl. GST
₹101.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7350
₹85.90 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 250mA
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.165 g
Overview
The HT73XX series is a CMOS step-down voltage regulator featuring high ripple rejection, low power consumption, and low dropout characteristics, with integrated overcurrent and short-circuit protection. The device offers an ultra-low typical quiescent current of 3.0μA, capable of delivering up to 250mA output current under minimal input-to-output voltage differential while maintaining good voltage regulation. The maximum allowable input voltage is 18V.
Applications
- Cameras and camcorders
- Microprocessor voltage regulators
- LAN card voltage regulators
- Wireless communication devices
- Audio and video equipment
Key features
- Ultra-low typical quiescent current: 3.0μA
- High output voltage accuracy: ±1% (for 2.8V, 3.3V, 5.0V output voltages); ±2% (for other output voltage values)
- Maximum operating voltage: 18V
- High current capability: output current up to 250mA at 3.3V output voltage
- Ultra-low dropout voltage: 80mV at 40mA output current and 3.3V output voltage
- Low temperature coefficient
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7350-AQ#C47089605QNHCHIP · SOT-89 | QNHCHIP | SOT-89 | 200 | ₹8.94 · 200 in stock | View |
 | QN6209A50PG#C50379986QNHCHIP · SOT-89-3 | QNHCHIP | SOT-89-3 | 940 | ₹6.14 · 940 in stock | View |
 | QN7350#C46609647QNHCHIP · SOT-89-3 | QNHCHIP | SOT-89-3 | 700 | ₹8.94 · 700 in stock | View |
 | QN7350-APG#C42444799QNHCHIP · SOT-89 | QNHCHIP | SOT-89 | 570 | ₹7.37 · 570 in stock | View |
