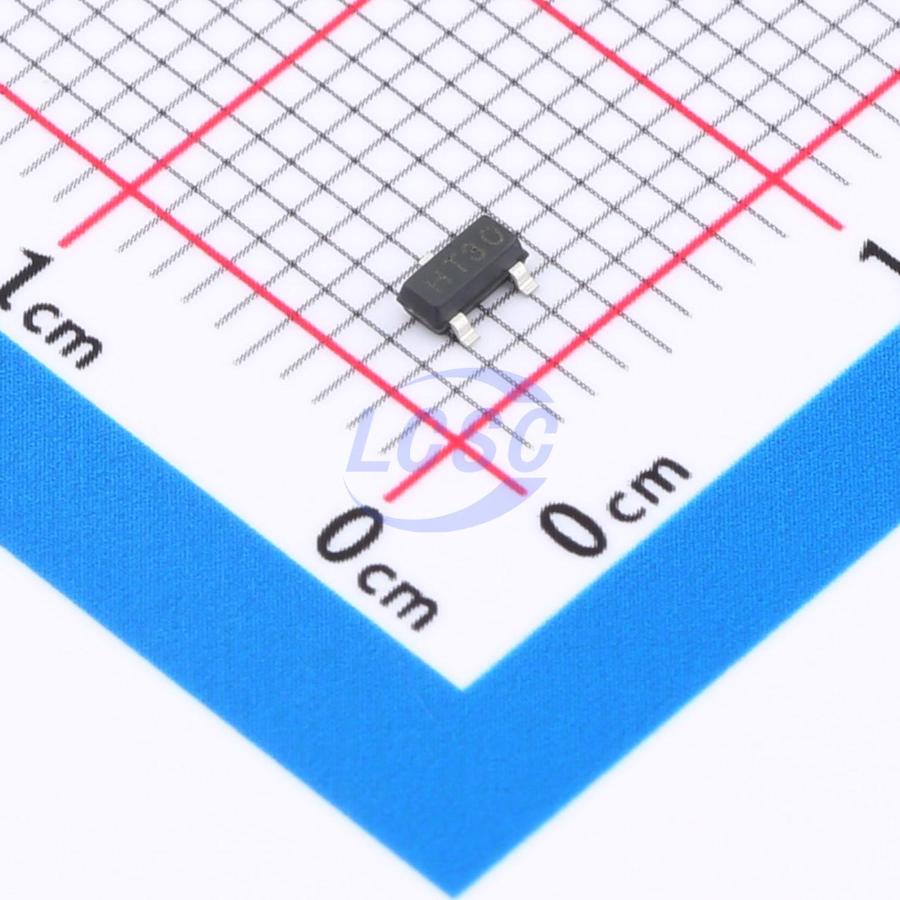

HT7530
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23
SOT-23RoHSActive
IC REG LINEAR 3V 100mA SOT-23
- Manufacturer
- QNHCHIP
- Manufacturer part #
- HT7530
- Store part #
- C47020949
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,600 in stock
#C47020949
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.51 | ₹90.20 |
| 200+ | ₹3.52 | ₹704.00 |
| 600+ | ₹2.96 | ₹1,776.00 |
| 3,000+ | ₹2.63 | ₹7,890.00 |
| 9,000+ | ₹2.34 | ₹21,060.00 |
| 21,000+ | ₹2.18 | ₹45,780.00 |
20 × ₹4.51
₹90.20
excl. GST
₹106.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7530
₹90.20 for 20 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 24V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.038 g
Overview
This device is a low-dropout linear regulator built on CMOS technology, capable of withstanding input voltages up to 24V and offering multiple fixed output voltage options ranging from 2.8V to 9.0V. It features extremely low quiescent current consumption, making it well-suited for powering a wide range of audio, video, and communications equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
- Wireless communication equipment
Key features
- Low power consumption
- Low dropout voltage
- Low temperature drift coefficient
- 24V input voltage tolerance
- Quiescent current 1.5μA
- Output voltage accuracy: ±2%
- High output current: 100mA
