GREENMICRODatasheet (PDF)

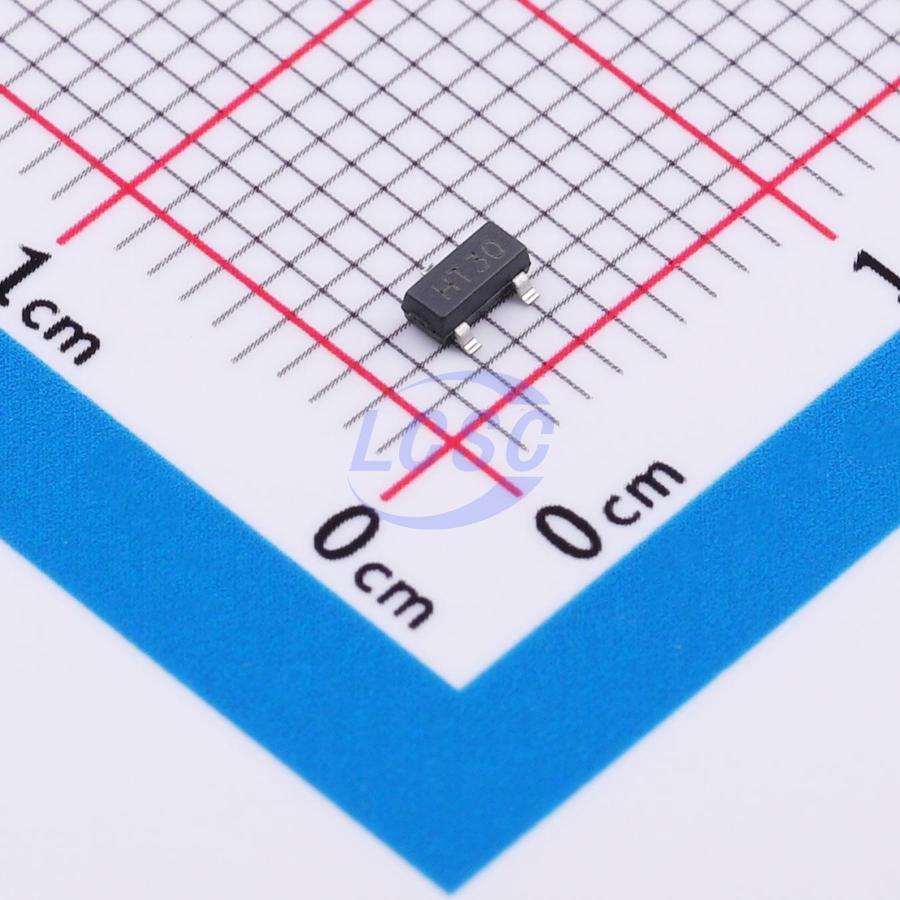

HT7530AR
3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- HT7530AR
- Store part #
- C51889847
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C51889847
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.37 | ₹87.40 |
| 200+ | ₹3.37 | ₹674.00 |
| 600+ | ₹2.83 | ₹1,698.00 |
| 3,000+ | ₹2.50 | ₹7,500.00 |
| 9,000+ | ₹2.21 | ₹19,890.00 |
| 21,000+ | ₹2.06 | ₹43,260.00 |
20 × ₹4.37
₹87.40
excl. GST
₹103.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7530AR
₹87.40 for 20 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 4uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 36V
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.035 g
Overview
The HT75XX series is a low-power, high-voltage CMOS LDO regulator with a maximum output current of 150mA. This series features an ultra-low quiescent current of 4μA while maintaining transient response capability to fast load transients. It also integrates thermal protection, short-circuit protection, and current limiting protection, with a maximum input voltage of 36V. The fixed output voltage range covers 1.5V to 9V, with support for high-accuracy custom voltages.
Applications
- Battery-powered devices
- Communication equipment
- Wearable devices
- Smart home
Key features
- Low quiescent current, typical 4uA
- Maximum output current: 150mA
- High input voltage up to 36V
- Low dropout: 600mV at 100mA output current
- Small temperature coefficient: <±100 ppm/℃
- Output voltage options: 1.5V, 1.8V, 2.7V, 3.0V, 3.3V, 3.6V, 4.4V, 5.0V, 9.0V
