TDSEMICDatasheet (PDF)

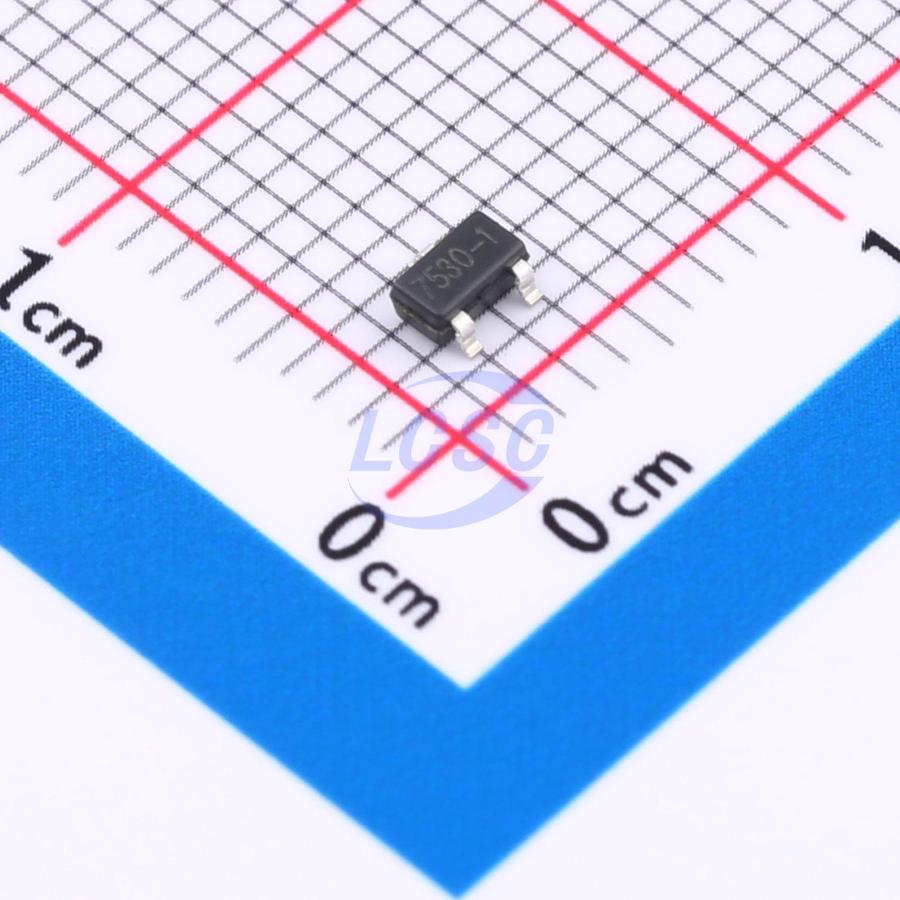

HT7530S
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3
SOT-23-3ROHS CompliantActive
100mA LOW POWER LDO
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7530S
- Store part #
- C22466411
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,680 in stock
#C22466411
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.42 | ₹108.40 |
| 200+ | ₹4.22 | ₹844.00 |
| 600+ | ₹3.56 | ₹2,136.00 |
| 3,000+ | ₹3.16 | ₹9,480.00 |
| 9,000+ | ₹2.82 | ₹25,380.00 |
| 21,000+ | ₹2.63 | ₹55,230.00 |
20 × ₹5.42
₹108.40
excl. GST
₹127.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7530S
₹108.40 for 20 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 36V
- Output Current
- 100mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.041 g
Overview
HT75XXS is a low dropout linear regulator utilizing CMOS technology. It supports a maximum output current of 100mA and a maximum input voltage of 36V. Several fixed output voltages are available, ranging from 2.5V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 36V
- Typical quiescent current: 2uA
- Maximum output current: 100mA
- Output voltage accuracy: ±2%
- Package types: SOT23-3, TO92, SOT89
