YONGYUTAIDatasheet (PDF)

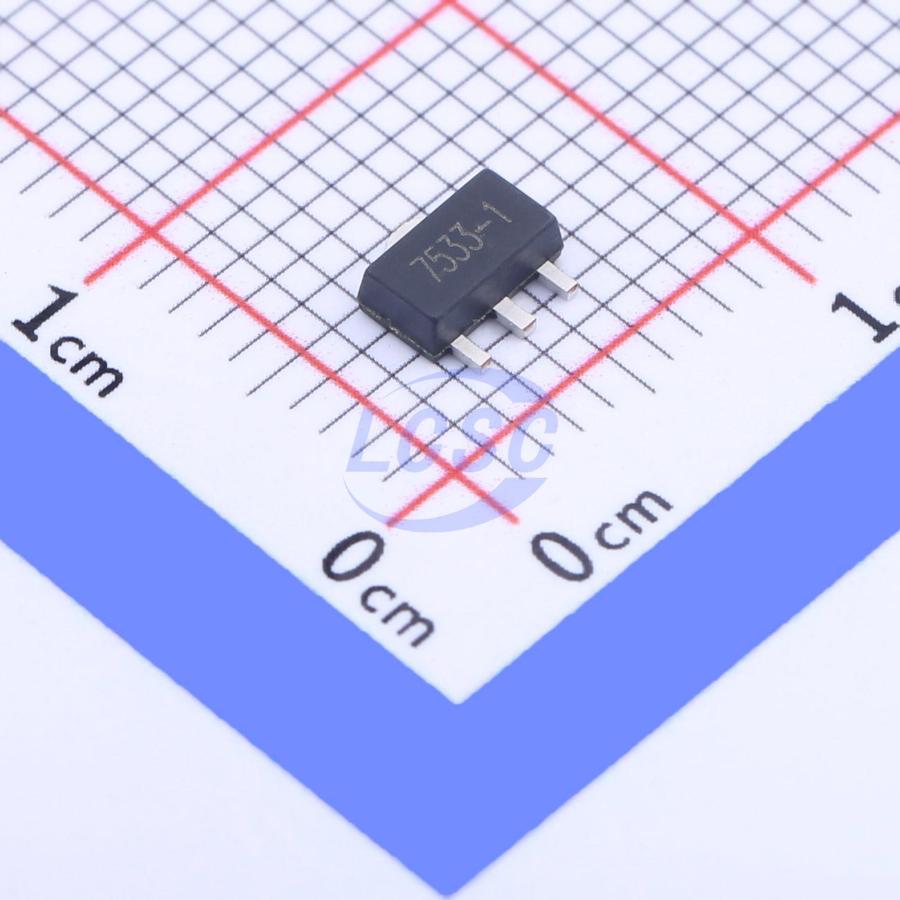

HT7533-1
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89
SOT-89RoHSActive
LDO High-Voltage Regulator
- Manufacturer
- YONGYUTAI
- Manufacturer part #
- HT7533-1
- Store part #
- C2944149
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,390 in stock
#C2944149
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.79 | ₹77.90 |
| 100+ | ₹6.24 | ₹624.00 |
| 300+ | ₹5.45 | ₹1,635.00 |
| 1,000+ | ₹4.54 | ₹4,540.00 |
| 5,000+ | ₹4.06 | ₹20,300.00 |
| 10,000+ | ₹3.84 | ₹38,400.00 |
10 × ₹7.79
₹77.90
excl. GST
₹91.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7533-1
₹77.90 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.15 g
Overview
75XX-1 Series are low-power, high-voltage regulators fabricated using CMOS process, with a maximum input voltage of 30V and an output voltage range of 1.5V~12.0V. They feature high-accuracy output voltage, ultra-low quiescent current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: 3μA
- Low dropout voltage: 0.1V typical
- Low temperature coefficient: 50 ppm/°C typical
- High input voltage: up to 30V
- High output voltage accuracy: ±3% tolerance
- Package: TO-92, SOT89-3, SOT-23-3
