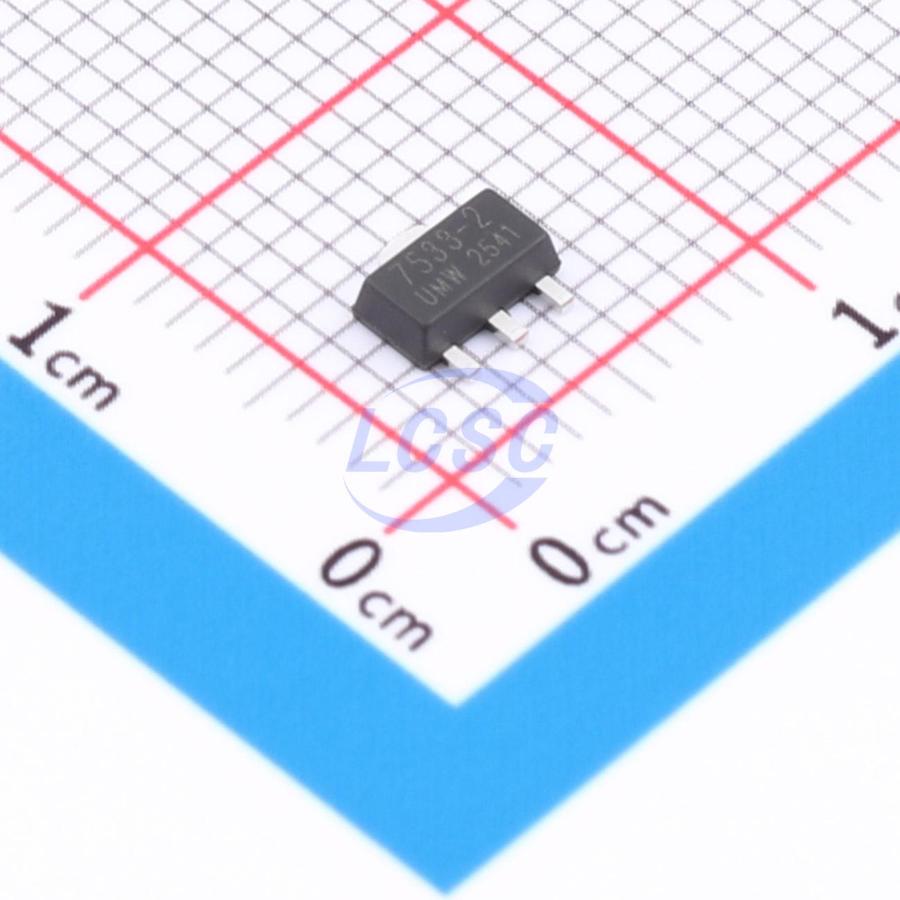

HT7533-2(UMW)
3.3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
- Manufacturer
- UMW
- Manufacturer part #
- HT7533-2(UMW)
- Store part #
- C52740940
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,690 in stock
#C52740940
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.00 | ₹70.00 |
| 100+ | ₹5.49 | ₹549.00 |
| 300+ | ₹4.74 | ₹1,422.00 |
| 1,000+ | ₹4.18 | ₹4,180.00 |
| 5,000+ | ₹3.73 | ₹18,650.00 |
| 10,000+ | ₹3.51 | ₹35,100.00 |
10 × ₹7.00
₹70.00
excl. GST
₹82.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7533-2(UMW)
₹70.00 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1.613 g
Overview
UMW HT75xx-2 is a low dropout linear regulator utilizing CMOS technology. Rated at 45V, it offers multiple fixed output voltages ranging from 2.0V to 5.0V with an output current capability of 250mA. The device features low quiescent current consumption, output short-circuit protection, and high-temperature output current reduction to prevent system failures. It is widely used to power various audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption, typical quiescent current 2.5μA
- Low input-output voltage differential
- Small temperature drift coefficient
- 45V rated voltage
- Output voltage accuracy: ±1%
- Output short-circuit protection
- Output current reduction when junction temperature exceeds 120℃
