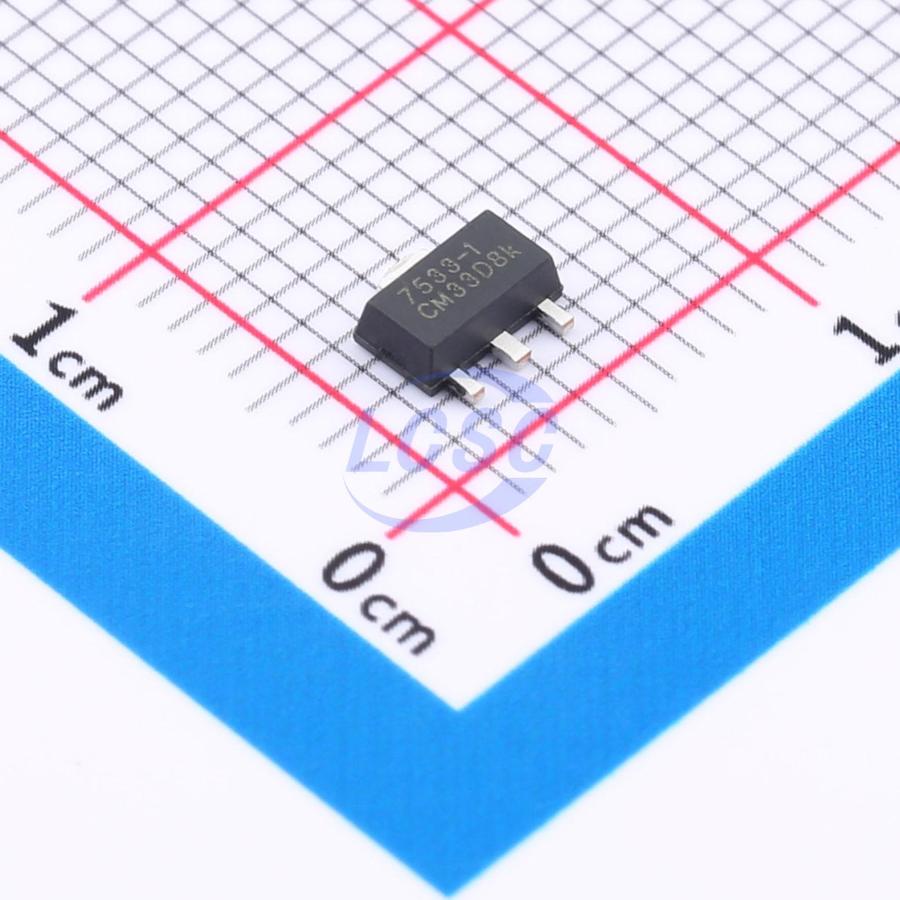

HT7533
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-89
SOT-89ROHS CompliantActive
IC REG LINEAR 3.3V 150mA SOT-89
- Manufacturer
- Minos
- Manufacturer part #
- HT7533
- Store part #
- C19272221
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,320 in stock
#C19272221
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.34 | ₹63.40 |
| 100+ | ₹5.09 | ₹509.00 |
| 300+ | ₹4.46 | ₹1,338.00 |
| 1,000+ | ₹3.77 | ₹3,770.00 |
| 5,000+ | ₹3.40 | ₹17,000.00 |
| 10,000+ | ₹3.21 | ₹32,100.00 |
10 × ₹6.34
₹63.40
excl. GST
₹74.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7533
₹63.40 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -35℃~+80℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 150mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.143 g
Overview
HT7533 is a low dropout linear regulator using CMOS technology. With a maximum operating voltage of 24V and an output voltage of 3.3V, it features low quiescent current consumption and is widely used in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Small temperature drift coefficient
- Maximum operating voltage up to 24V
- Quiescent current: 2.5μA
- Output current: 150mA
- Output voltage accuracy: ±2%
