GUOXIN JIAPIN SEMICONDUCTORDatasheet (PDF)

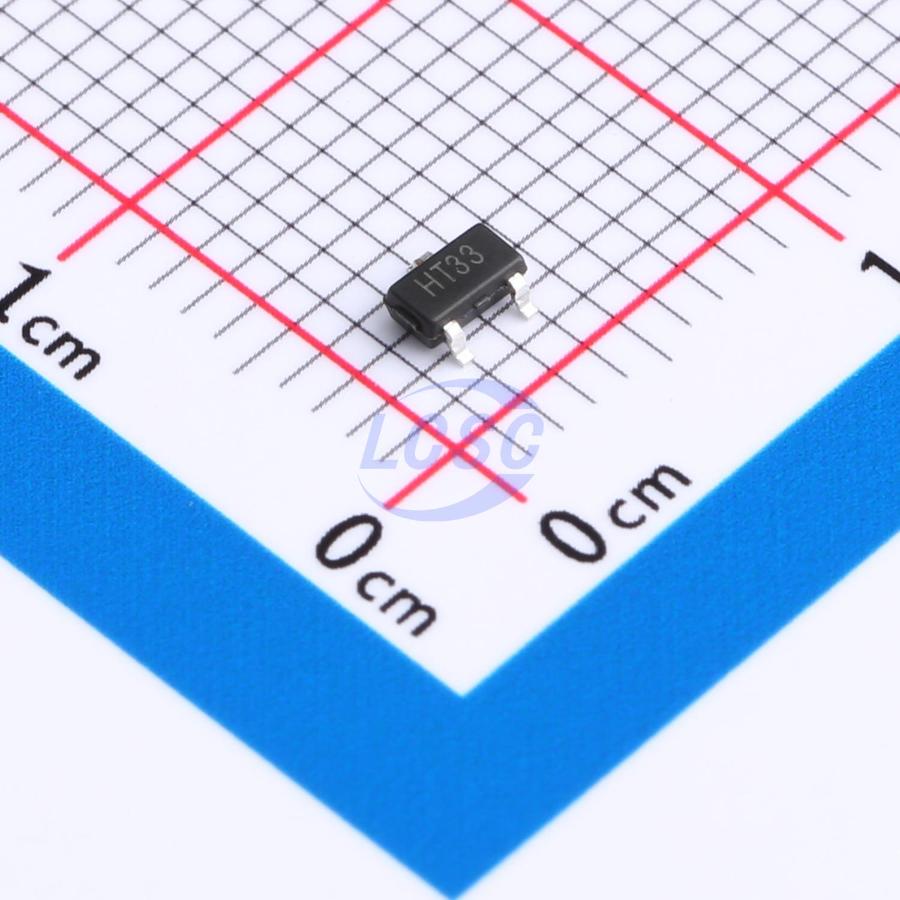

HT7533
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3L
SOT-23-3LRoHSActive
IC REG LINEAR 3.3V 100mA SOT-23-3L
- Manufacturer
- GUOXIN JIAPIN SEMICONDUCTOR
- Manufacturer part #
- HT7533
- Store part #
- C5136781
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C5136781
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.83 | ₹96.60 |
| 200+ | ₹3.92 | ₹784.00 |
| 600+ | ₹3.40 | ₹2,040.00 |
| 3,000+ | ₹2.69 | ₹8,070.00 |
| 9,000+ | ₹2.42 | ₹21,780.00 |
| 21,000+ | ₹2.28 | ₹47,880.00 |
20 × ₹4.83
₹96.60
excl. GST
₹113.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7533
₹96.60 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 18V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.04 g
Overview
The HT75XX series are low-power, high-voltage LDO regulators fabricated with CMOS technology, supporting input voltages up to 18V and output voltages ranging from 2.0V to 5.0V. Key features include high-accuracy output voltage, ultra-low quiescent current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: ≤3μA
- Low dropout voltage: 0.1V typical
- Low temperature drift: 50ppm/°C typical
- High input voltage: up to 18V
- High-accuracy output voltage: ±3% tolerance
- Package: TO-92, SOT89-3, SOT23-3
