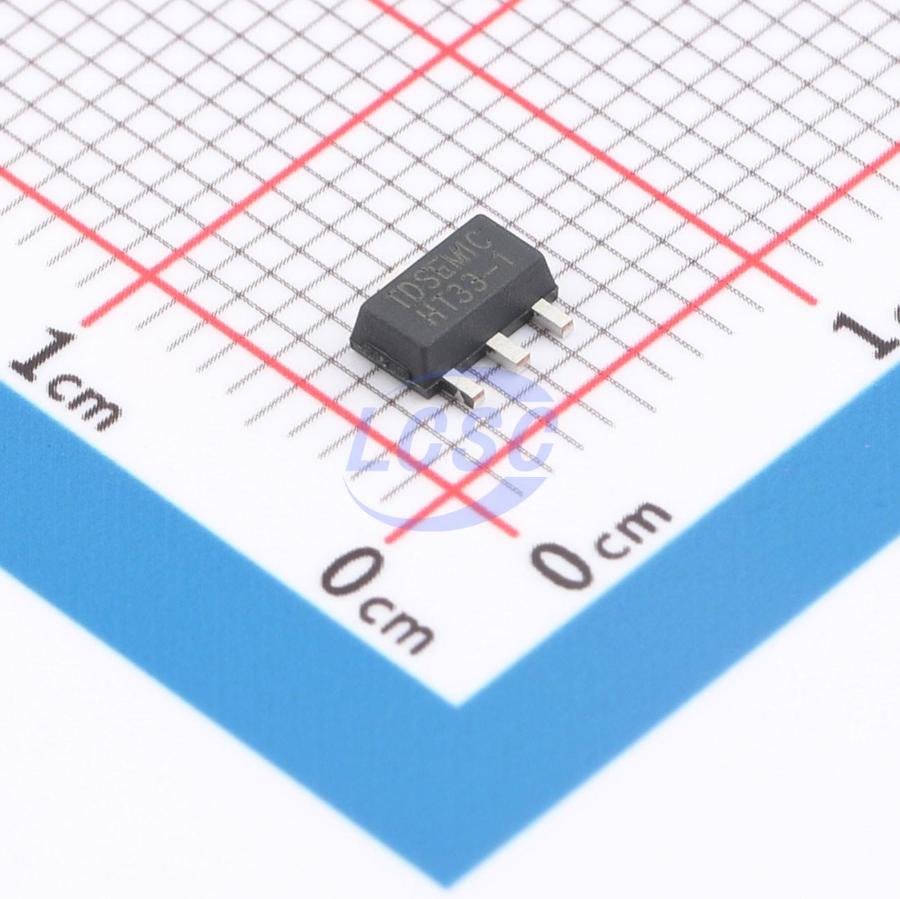

HT7533H-TD(55V)
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-89
SOT-89ROHS CompliantActive
Low-dropout linear regulator with 250 mA output current, 55 V voltage withstand, and low quiescent current
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7533H-TD(55V)
- Store part #
- C49023474
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,950 in stock
#C49023474
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.31 | ₹66.55 |
| 50+ | ₹10.48 | ₹524.00 |
| 150+ | ₹9.06 | ₹1,359.00 |
| 1,000+ | ₹7.99 | ₹7,990.00 |
| 2,000+ | ₹7.14 | ₹14,280.00 |
| 5,000+ | ₹6.72 | ₹33,600.00 |
5 × ₹13.31
₹66.55
excl. GST
₹78.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7533H-TD(55V)
₹66.55 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 55V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.155 g
Overview
This device is a low-dropout linear regulator fabricated in CMOS technology, featuring a 55V breakdown voltage rating, 3.3V and 5.0V output voltage options, and up to 250mA output current capability. It offers extremely low quiescent current and integrates output short-circuit protection. When the junction temperature exceeds 120℃, the output current is automatically reduced to prevent system overheating. This device is suitable for powering a wide range of audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low dropout voltage
- Low temperature drift coefficient
- 55V withstand voltage
- Typical quiescent current 2.0μA
- Output voltage accuracy ±1%
- Output short-circuit protection
- Output current reduction when junction temperature exceeds 120℃
- ESD HBM exceeds 2500V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7133H-TD(55V)#C49023492TDSEMIC · SOT-89 | TDSEMIC | SOT-89 | 38,330 | ₹9.71 · 38,330 in stock | View |
